Linear Polarization Resistance (LPR)
Last Updated: 10/29/21 by Alex Peroff
3Experimental Setup in AfterMath
To perform a linear polarization resistance experiment in AfterMath, choose Linear Polarization Resistance (LPR) from the Experiments menu (see Figure 1).

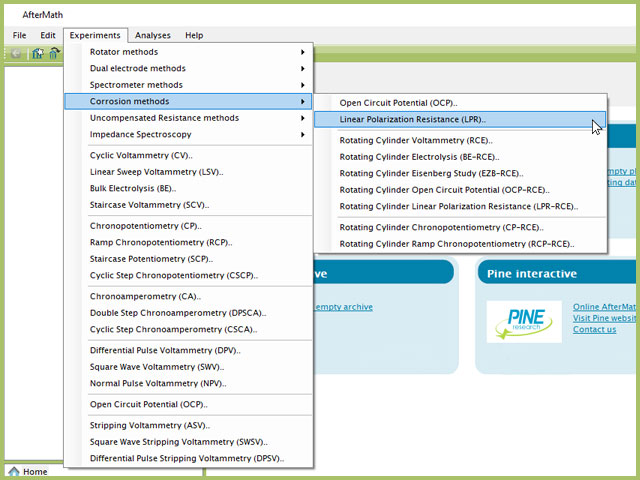

Figure 1. Linear Polarization Resistance (LPR) Experiment Menu Selection in AfterMath
Doing so creates an entry within the archive, called LPR Parameters. In the right pane of the AfterMath application, several tabs will be shown (see Figure 2).

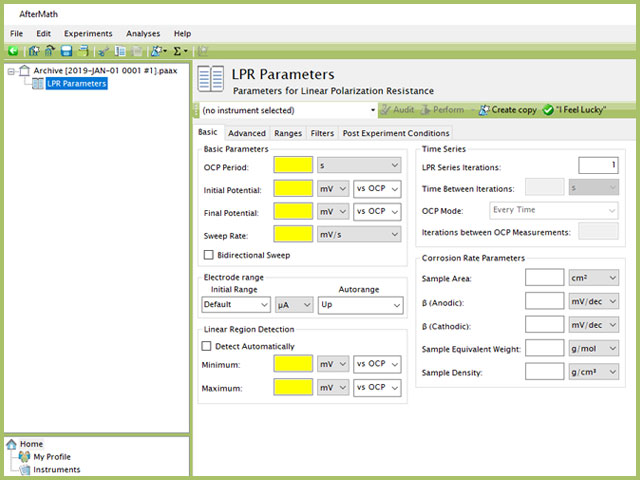

Figure 2. Linear Polarization Resistance (LPR) Experiment Basic Tab
Continue reading for detailed information about the fields on each unique tab.
3.3Ranges, Filters, and Post Experiment Conditions Tab
