1Technique Overview
2Fundamental Equations
3Experimental Setup in AfterMath
To perform a current interrupt experiment in AfterMath, choose Current Interrupt (CI-RU) from the Experiments menu (see Figure 1).

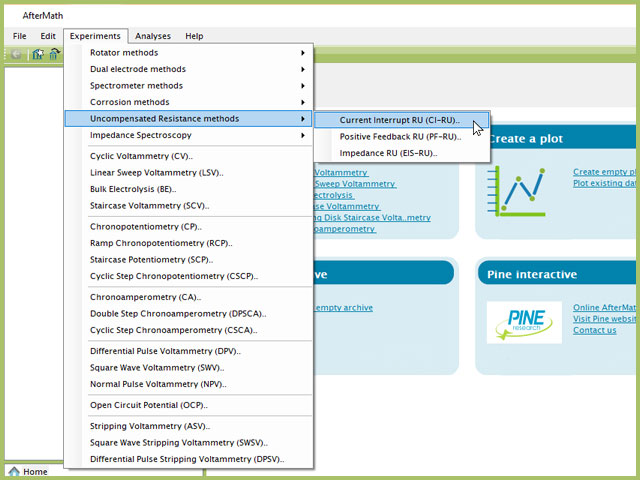

Figure 1. Current Interrupt (CI-RU) Experiment Menu Selection in AfterMath
Doing so creates an entry within the archive, called CI-RU Parameters. In the right pane of the AfterMath application, several tabs will be shown (see Figure 2).

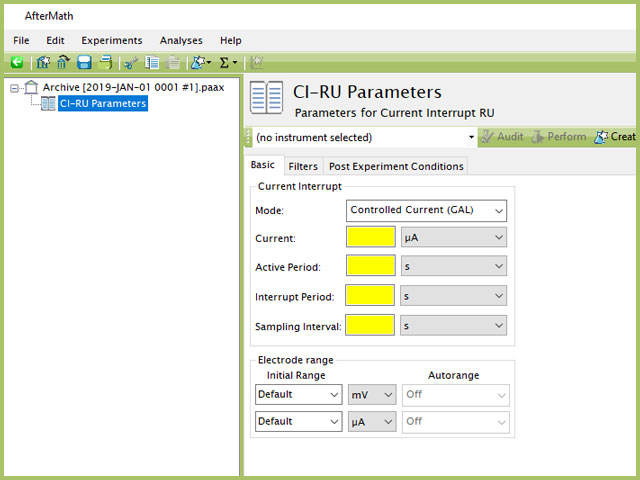

Figure 2. Current Interrupt RU (CI-RU) Experiment Basic Tab
Continue reading for detailed information about the fields on each unique tab.
