Positive Feedback RU (PF-RU)
Last Updated: 3/6/19 by Support
3Experimental Setup in AfterMath
To perform a positive feedback uncompensated resistance experiment in AfterMath, choose Positive Feedback RU (PF-RU) from the Experiments menu (see Figure 1).

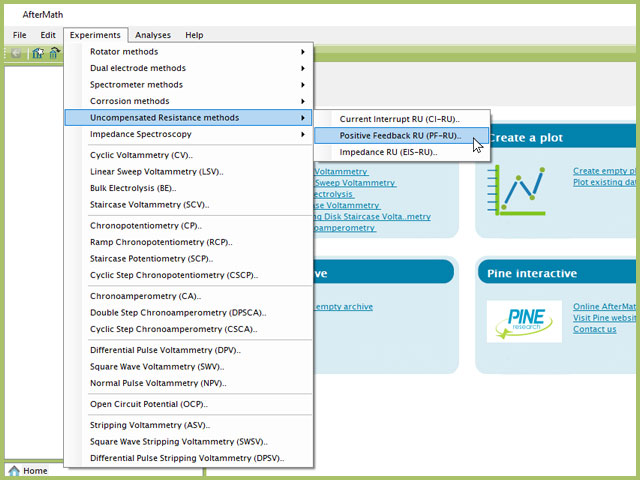

Figure 1. Positive Feedback Feedback Uncompensated Resistance (PF-RU) Experiment Menu Selection in AfterMath
Doing so creates an entry within the archive, called PF-RU Parameters. In the right pane of the AfterMath application, several tabs will be shown (see Figure 2).

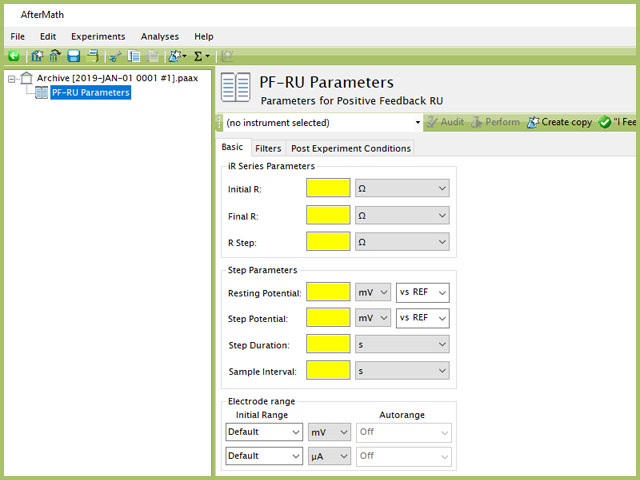

Figure 2. Positive Feedback RU (PF-RU) Experiment Basic Tab
Continue reading for detailed information about the fields on each unique tab.
3.3Ranges, Filters, and Post Experiment Conditions Tab
