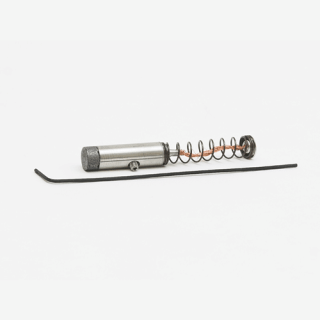

Complete MSR Series Rotator Brush Assembly
Electrode Rotators make contact to the rotating electrode via the shaft, which makes physical contact with the brush. A brush is a silver-graphite composite material that makes electrical contact between the shaft and where you connect your potentiostat cell cable leads. These brushes wear over time, forming an advantageous concave groove, which enhances contact. After sufficient use, the brush wears and approaches the stainless steel backing of the brush assembly, at which point the brush must be replaced. This brush replacement assembly replaces the brush on an MSR, MSRX, or ASR rotator. It includes the brush assembly, hex key, and nylon housing, where you can select the color banana receptacle you wish. Standard colors for Pine Research are red = disk and blue = ring; however, the color is only aesthetic. Choice of color does not influence the data acquired.
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Electrode Rotators make contact to the rotating electrode via the shaft, which makes physical contact with the brush. A brush is a silver-graphite composite material that makes electrical contact between the shaft and where you connect your potentiostat cell cable leads. These brushes wear over time, forming an advantageous concave groove, which enhances contact. After sufficient use, the brush wears and approaches the stainless steel backing of the brush assembly, at which point the brush must be replaced. This brush replacement assembly replaces the brush on an MSR, MSRX, or ASR rotator. It includes the brush assembly, hex key, and nylon housing, where you can select the color banana receptacle you wish. Standard colors for Pine Research are red = disk and blue = ring; however, the color is only aesthetic. Choice of color does not influence the data acquired.
