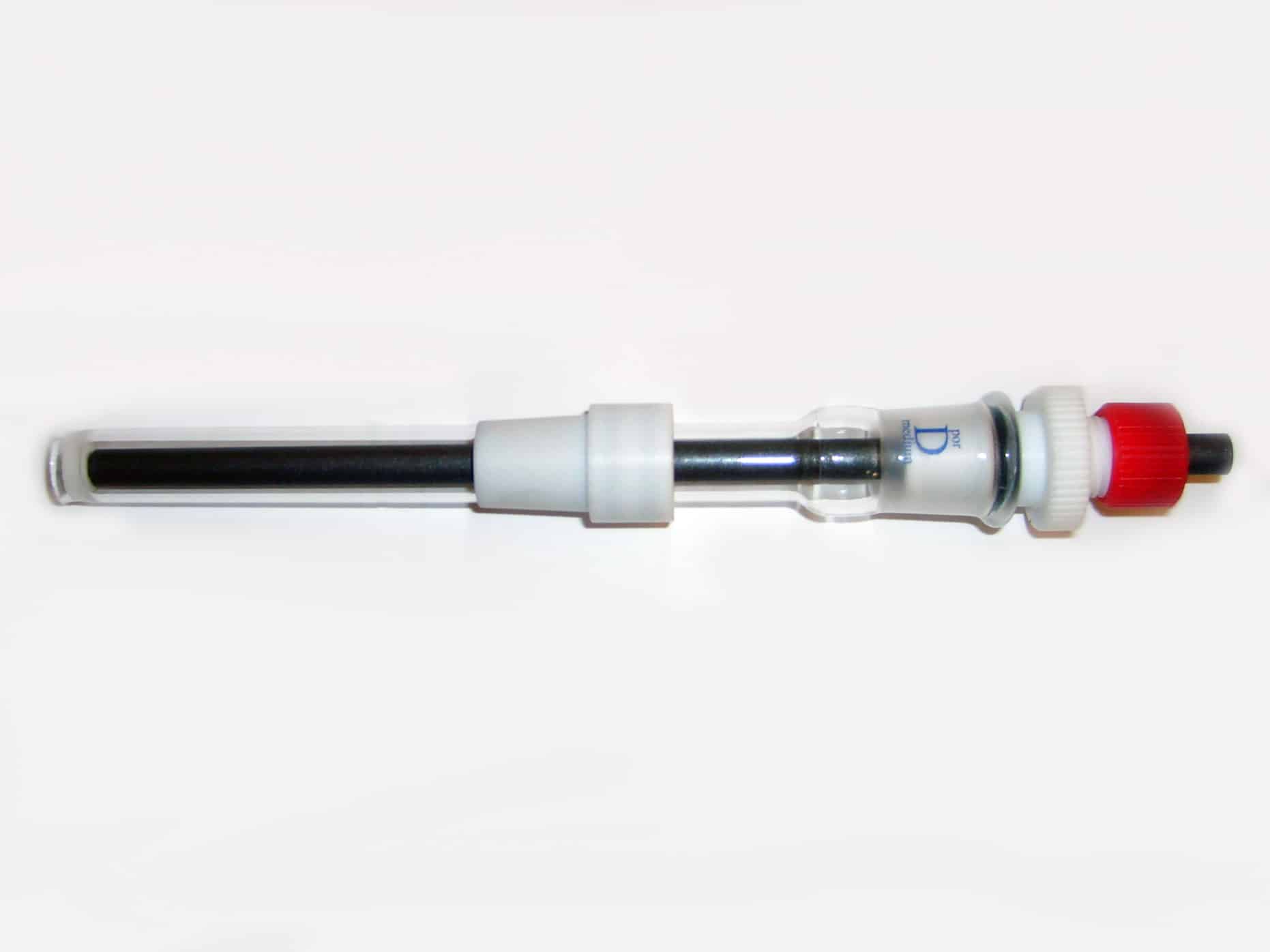

This Graphite Counter Electrode Assembly features a 6.4 mm OD x 184 mm long graphite rod seated inside a fritted glass tube by means of a 7 mm OD 14/20 PTFE adapter. This fritted isolation tube has a 12 mm OD to 14/20 adapter such that the electrode and fritted tube can pass through a 14/20 port and seal within the ground glass joint. Both adapters enable adjusting the immersion depth of the electrode and isolation tube. The fritted glass tube isolates the counter electrode from the main test solution. The fritted glass tube is not required for use and can be removed, for the graphite counter electrode to fit within a 14/20 port directly with its own adapter (included). This counter electrode is ideally designed for use with our Standard volume electrochemical cells, but is not limited to use in these cells.
Product Kit
This product is sold as a kit, meaning it consists of multiple independent products used together. View the individual kit products in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Products Included in this Kit
Product kits contain more than one product. Should you want more details or wish to order a replacement component, visit the product page below.
Qty
Product Name / Part #
Price
1
Graphite Rod
MPGRR250
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Fritted Isolation Tube
RRPG097
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Adapter, 7 mm OD to 24/40 Port, PTFE
RRPG036K1
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
PTFE Mount for Fritted Tube
ACEP1420R12
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Counter Electrode Assembly, Graphite (C), 14/20
Counter Electrodes
Product Counter electrode size type
Standard (9.5 mm - 12 mm OD)
Product Counter body diameter
6.4 mm (shroud)
Product Counter length
150 mm
Product Counter electrode material
Carbon Graphite
Product Counter electrode connection style
None (clip to carbon rod)
Product Counter electrode graphite rod length
184.2 mm
Product Counter electrode adapter
12 mm to 14/20 Joint, 6.4 mm to 14/20 Joint
Product Counter electrode isolation tube frit
Ace Glass Frit D (10 – 20 µm)
Product Counter electrode isolation tube diameter
12 mm
- She, F.; Guo, Z.; Liu, F.; Yu, Z.; Chen, J.; Fan, Y.; Lei, Y.; Chen, Y.; Li, H.; Wei, L. Curvature-Dependent Electrochemical Hydrogen Peroxide Synthesis Performance of Oxidized Carbon Nanotubes. ACS Catal. 2024, 14, 10928-10938.
- Gautam, S.; Hadley, A.M.K.; Sundarraman, M.; Chugh, S.; Gates, B.D. Enhanced CO Tolerance with PtRuAuPd/C Anode Catalyst in Proton Exchange Membrane Fuel Cells. ACS Applied Energy Materials 2024.
- A. Spencer, M.; P. Holzapfel, N.; You, K.; Mpourmpakis, G.; Augustyn, V. Participation of electrochemically inserted protons in the hydrogen evolution reaction on tungsten oxides. Chem. Sci. 2024, 15, 5385-5402.
- Yu, Z.; Zhang, D.; Wang, Y.; Liu, F.; She, F.; Chen, J.; Zhang, Y.; Wang, R.; Zeng, Z.; Song, L.; Chen, Y.; Li, H.; Wei, L. Spin Manipulation of Heterogeneous Molecular Electrocatalysts by an Integrated Magnetic Field for Efficient Oxygen Redox Reactions. Adv. Mater. 2024, 36, 2408461.
- San Roman, D.; Krishnamurthy, D.; Garg, R.; Hafiz, H.; Lamparski, M.; Nuhfer, N.T.; Meunier, V.; Viswanathan, V.; Cohen-Karni, T. Engineering Three-Dimensional (3D) Out-of-Plane Graphene Edge Sites for Highly Selective Two-Electron Oxygen Reduction Electrocatalysis. ACS Catal. 2020, 10, 1993-2008.
- Vishnosky, N. Synthesis, characterization, and evaluation of metal complexes with cancer selective anti-proliferative effects and hydrogen evolution catalytic properties. Ph.D. Dissertation, University of Louisville, 2019.
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Carbon Materials
Graphite Rod
