E1E Series Stationary Working Electrode, Edge Plane Pyrolytic Graphite (GE), PTFE shroud

Part #: AFE1E050GE · Electrocatalysis

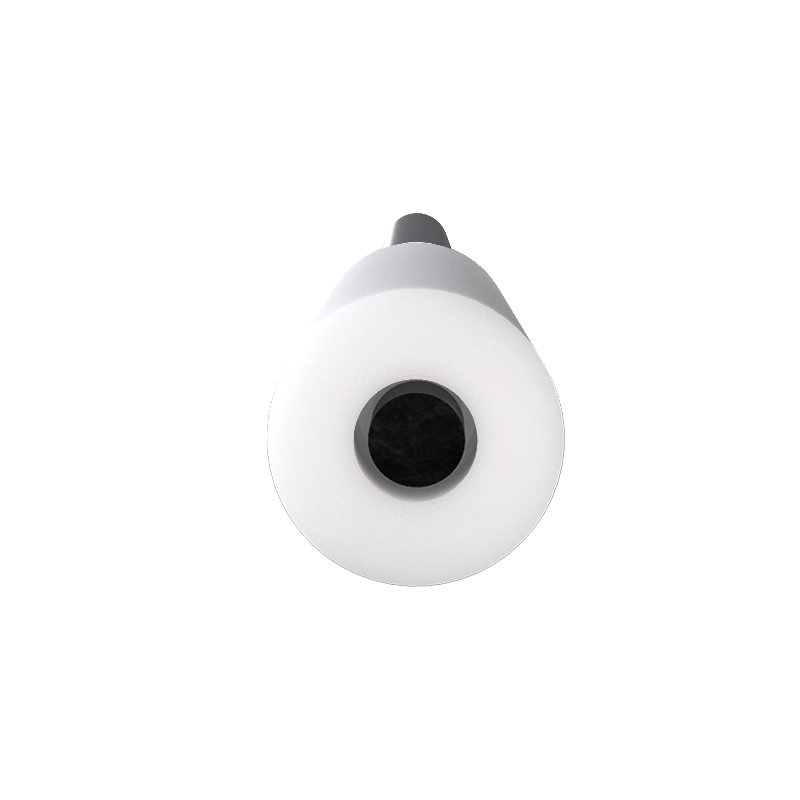

The E1E series stationary working electrodes have been precision-machined to be high-quality working electrodes. They resemble the form factor of our classic E3 series RDE tips; however, the shaft and tip are permanently coupled and the shaft will not fit into a rotator. They are ideally designed for use with our Standard Three-Electrode Cell Kit . These electrodes feature a PTFE shroud and an inlaid disk geometry for the working electrode material.

Product Information

Important Product Warnings and Notices

Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.

Product Specifications

The specifications of this product, and any other product that may be included in a kit or bundle, or a part that is included with this product, are listed below.
E1E Series Stationary Working Electrode, Edge Plane Pyrolytic Graphite (GE), PTFE shroud

Electrode Shafts

Shaft length (overall)
152 mm (6 in)
Shaft shroud material
N/A (No shroud)
Shaft rotator compatibility
None (not for use in a rotator)

Working Electrodes

Disk Electrodes
Disk electrode style
Fixed Disk
Disk material
Edge-Plane Pyrolytic Graphite (GE)
Disk crystal lattice
polycrystalline
Disk material purity
99.999%
Disk finish
Mirror Polish
Disk diameter
~3.8 mm
Disk type
Fixed (embedded in electrode tip)
Disk series compatibility
None (Fixed Disk)
Stationary Electrodes
Working electrode diameter
12 mm (shroud)
Electrode shroud material
PTFE
Working electrode connection style
4 mm Banana Receptacle
Working size type
Standard (9.5 mm – 12 mm OD)
Electrode length
38.1 mm
General
Electrode series
E1E
Thermal stability range
10°C - 25°C
Electrode use/application
Stationary (non-rotating)

Optional Product Add-Ons

Customers may wish to order optional add-on products and accessories compatible with this product. Should you want more details or wish to order an additional item, refer to the list below.

Product Documentation

Historically, much of our support content was written and published as PDF documents. We are primarily writing new support content as part of our Support Center instead; however, product user guides are still published in this format and not all historical application notes and other support documents have been migrated to the Support Center yet.
Document Title
Document Number
Document Type

Safety Data Sheets (SDS)

If this product contains products where an SDS sheet is available, it will be displayed below.

Carbon Materials

Edge-Plane Pyrolytic Graphite (GE)
