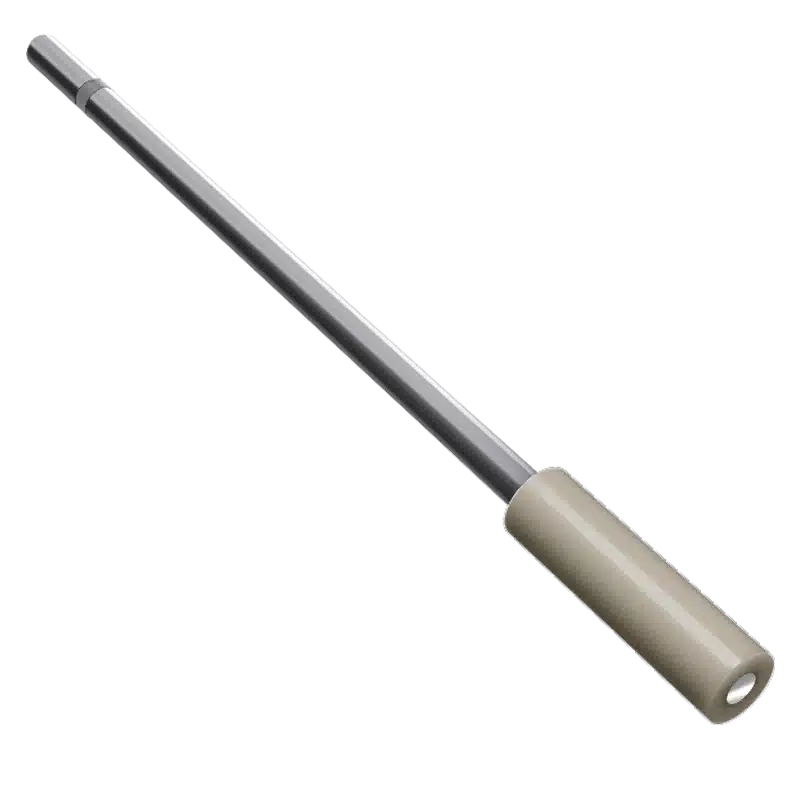

E2M Series FastSpeed Rotating Disk Electrode, 2205 Stainless Steel, PEEK shroud
Part Number
AFE2M050T7PK
The E2M FastSpeed rotating disk electrodes (RDE) are designed for high rotation speed applications, when using an MSR-family rotator. The shaft and tip are permanently fixed together and sold as a single assembly, which ensures a precise and balanced RDE. The E2 series are available in a variety of disk materials and shroud materials to suit your application.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Maximum Rotation Rate: 7000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Electrode Rotator Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), and MSR evo (AFMSR24) electrode rotators.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.
E2M Series FastSpeed Rotating Disk Electrode, 2205 Stainless Steel, PEEK shroud
Electrode Shafts
Product Shaft length (overall)
179 mm (7.05 in)
Product Shaft shroud material
N/A (No shroud)
Working Electrodes
Disk Electrodes
Product Disk electrode style
Fixed Disk
Product Disk material
2205 Stainless Steel
Product Disk crystal lattice
polycrystalline
Product Disk material purity
100%
Product Disk finish
Mirror Polish
Product Disk diameter
5 mm
Product Disk type
Fixed (embedded in electrode tip)
Product Disk series compatibility
None (Fixed Disk)
Electrode Tips
Product Tip maximum rotation rate
7000 RPM
Product Tip shroud material
PEEK
Product Tip shroud diameter
12 mm
Product Tip shroud length
38.1 mm
Product Tip length (overall)
38.1 mm
Rotating Electrodes
Product Maximum rotation rate
7000 RPM
Product Shaft compatibility
None (shaft included)
Product Rotating electrode type
Tip + Shaft Combination
Product Compatible electrode rotator(s)
MSR evo Rotator (AFMSR24), MSR Rotator (AFMSRCE), MSRX Rotator (AFMSRX)
General
Product Electrode series
E2
Product Thermal stability range
10°C - 80°C
Product Electrode use/application
Rotating Disk (RDE)
