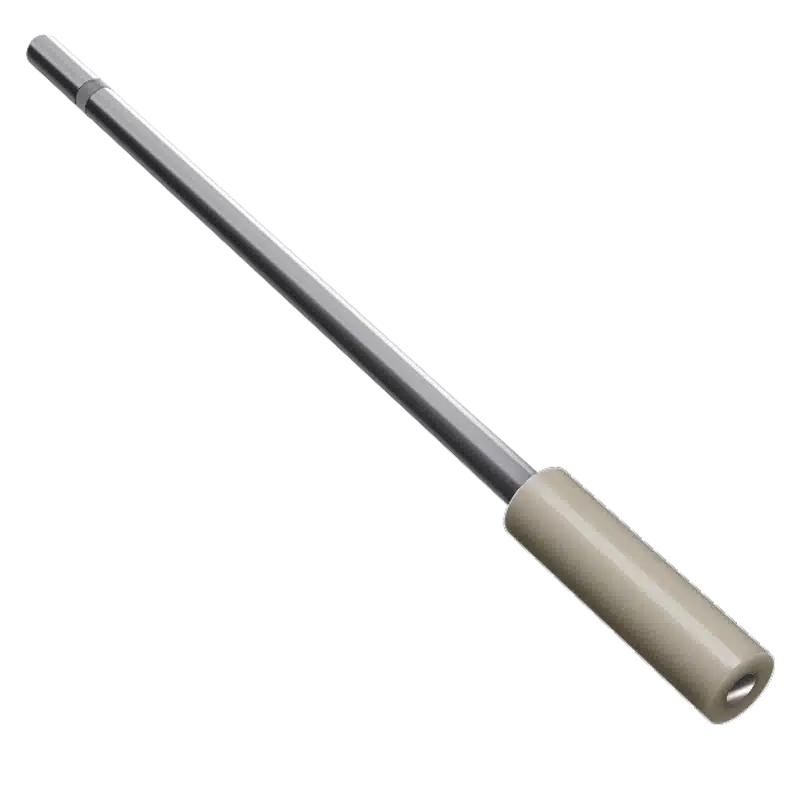

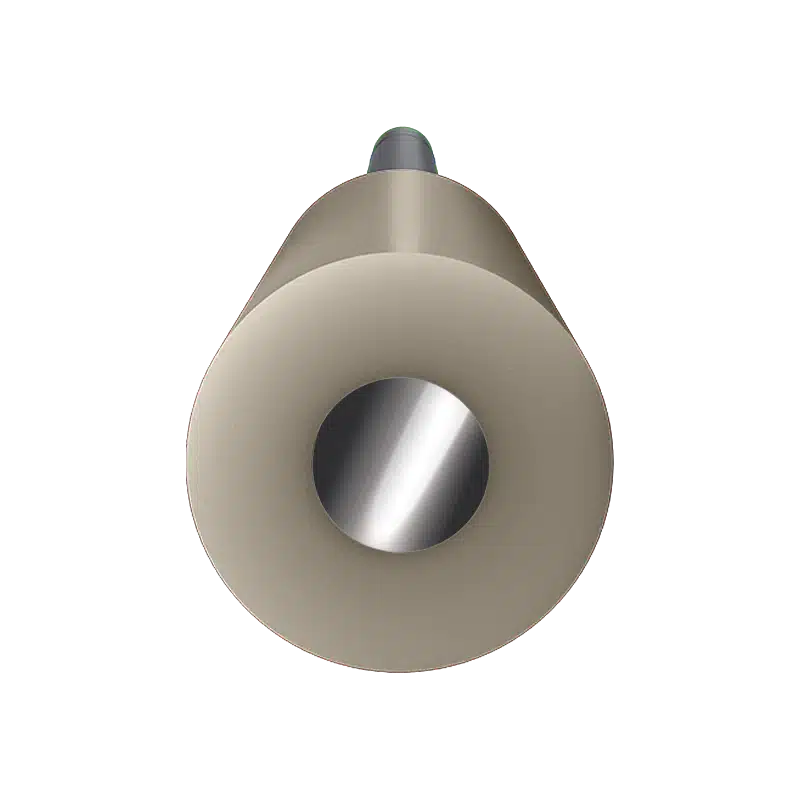

E2M Series FastSpeed Rotating Disk Electrode, Tin (Sn), PEEK shroud

Part #: AFE2M050SNPK · Electrocatalysis · RDE/RRDE

The E2M FastSpeed rotating disk electrodes (RDE) are designed for high rotation speed applications, when using an MSR-family rotator. The shaft and tip are permanently fixed together and sold as a single assembly, which ensures a precise and balanced RDE. The E2 series are available in a variety of disk materials and shroud materials to suit your application.

Product Information

Important Product Warnings and Notices

Maximum Rotation Rate: 7000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Electrode Rotator Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), and MSR evo (AFMSR24) electrode rotators.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.

Product Specifications

The specifications of this product, and any other product that may be included in a kit or bundle, or a part that is included with this product, are listed below.
E2M Series FastSpeed Rotating Disk Electrode, Tin (Sn), PEEK shroud

Electrode Shafts

Shaft length (overall)
179 mm (7.05 in)
Shaft shroud material
N/A (No shroud)
Shaft rotator compatibility
MSR Rotator (AFMSRCE), MSRX Rotator (AFMSRX), MSR evo Rotator (AFMSR24)

Working Electrodes

Disk Electrodes
Disk electrode style
Fixed Disk
Disk material
Tin (Sn)
Disk crystal lattice
polycrystalline
Disk material purity
99.999%
Disk finish
Mirror Polish
Disk diameter
5 mm
Disk type
Fixed (embedded in electrode tip)
Disk series compatibility
None (Fixed Disk)
Electrode Tips
Tip maximum rotation rate
7000 RPM
Tip shroud material
PEEK
Tip shroud diameter
12 mm
Tip shroud length
38.1 mm
Tip length (overall)
38.1 mm
Rotating Electrodes
Maximum rotation rate
7000 RPM
Shaft compatibility
None (shaft included)
Rotating electrode type
Tip + Shaft Combination
Compatible electrode rotator(s)
MSRX Rotator (AFMSRX), MSR Rotator (AFMSRCE), MSR evo Rotator (AFMSR24)
General
Electrode series
E2
Thermal stability range
10°C - 80°C
Electrode use/application
Rotating Disk (RDE)
