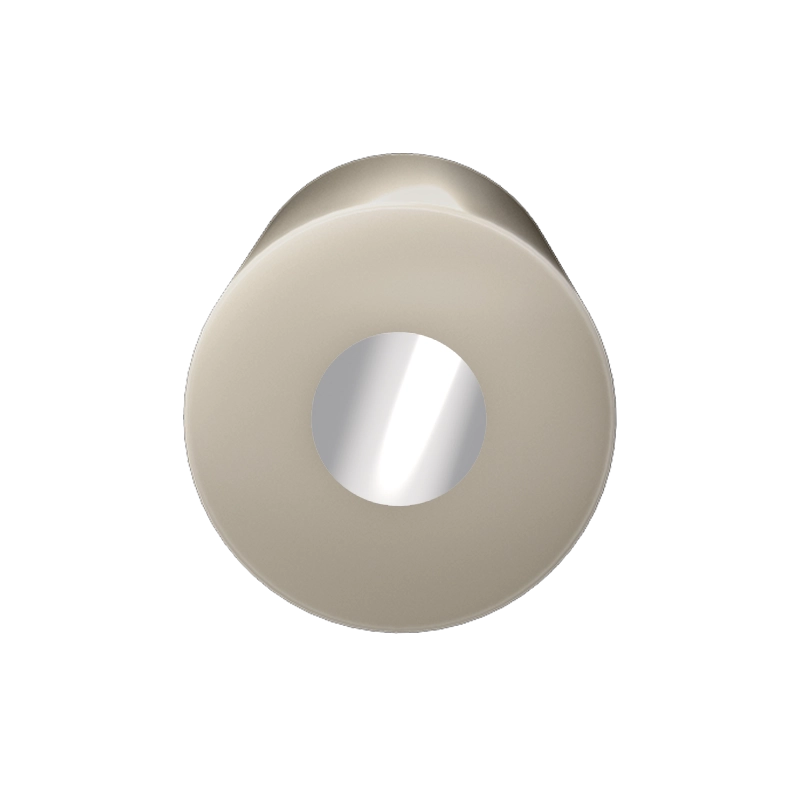

E3 Series Rotating Disk Electrode, Zinc (Zn), PEEK shroud

Part #: AFE3T050ZNPK · Electrocatalysis · RDE/RRDE

The E3 rotating disk electrode (RDE) tip is one of our most-popular series of RDEs. Simply screw the tip onto the shaft and you are ready to use it for rotating disk experiments. The E3 series tips are versatile because you can have many tips, of different disk and shroud materials, that interface to one RDE shaft, such as the Standard RDE shaft , compatible with the MSR Rotator family of instruments. The disk electrode is permanently sealed within the insulating shroud material. These electrodes are precision-machined and can enjoy a long life if used and cared for properly. Pine Research offers many disk materials and they are available in PTFE and PEEK shrouds.

Product Information

Important Product Warnings and Notices

Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Electrode Rotator Compatibility Notice
This product is only compatible with the ASR (AFASR), MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and CPR (AFCPRB/AFCPRBE) electrode rotators.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.

Product Specifications

The specifications of this product, and any other product that may be included in a kit or bundle, or a part that is included with this product, are listed below.
E3 Series Rotating Disk Electrode, Zinc (Zn), PEEK shroud

Working Electrodes

Disk Electrodes
Disk electrode style
Fixed Disk
Disk material
Zinc (Zn)
Disk crystal lattice
polycrystalline
Disk material purity
99.99%
Disk finish
Mirror Polish
Disk diameter
5 mm
Disk type
Fixed (embedded in electrode tip)
Disk series compatibility
None (Fixed Disk)
Electrode Tips
Tip maximum rotation rate
3000 RPM
Tip shroud material
PEEK
Tip shroud diameter
12 mm
Tip shroud length
35 mm
Tip length (overall)
35 mm
Rotating Electrodes
Maximum rotation rate
3000 RPM
Shaft compatibility
Non-Rotating RDE Shaft (AFE3F), RDE Shaft for the MSR Rotator (AFE3M), RDE Shaft for ASR Rotator (AFE3A)
Rotating electrode type
Fixed Disk Tip
Compatible electrode rotator(s)
ASR Rotator (AFASR), MSRX Rotator (AFMSRX), MSR Rotator (AFMSRCE), MSR evo Rotator (AFMSR24), CPR Rotator (AFCPRB/AFCPRBE)
General
Electrode series
E3
Thermal stability range
10°C - 80°C
Electrode use/application
Rotating Disk (RDE)

Optional Product Add-Ons

Customers may wish to order optional add-on products and accessories compatible with this product. Should you want more details or wish to order an additional item, refer to the list below.
