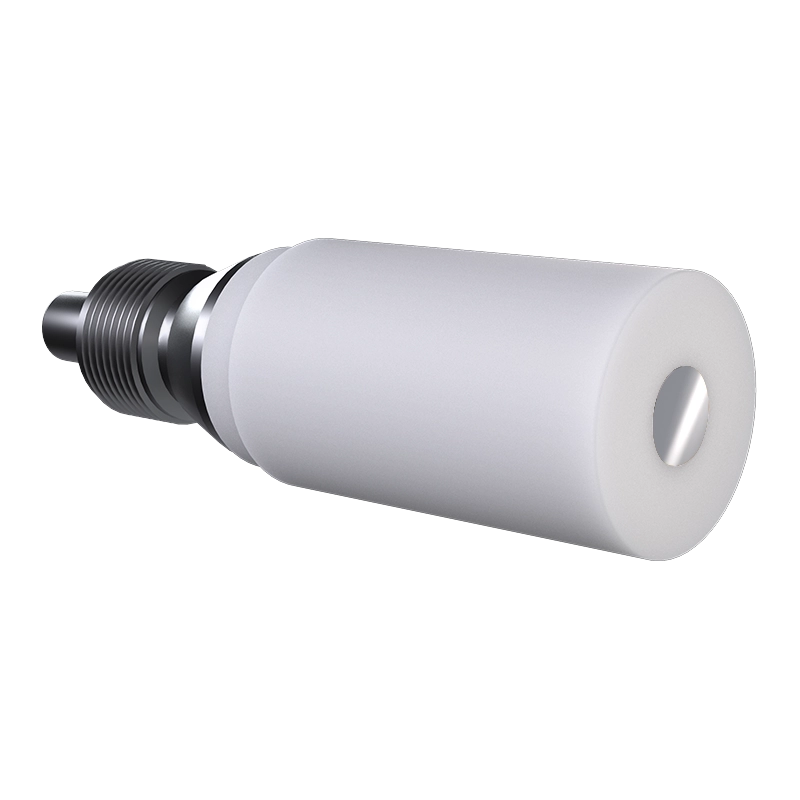

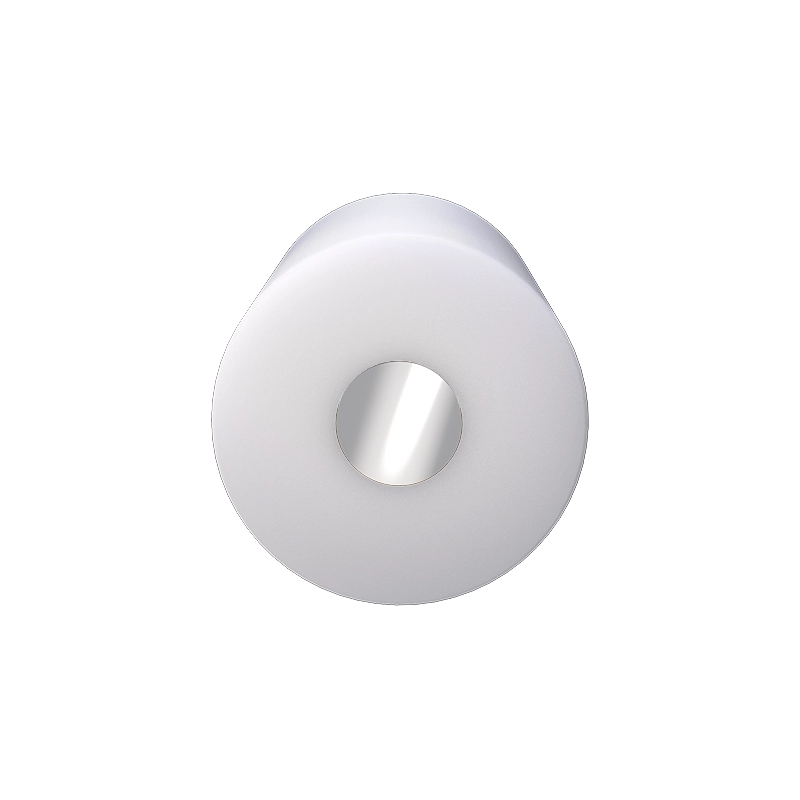

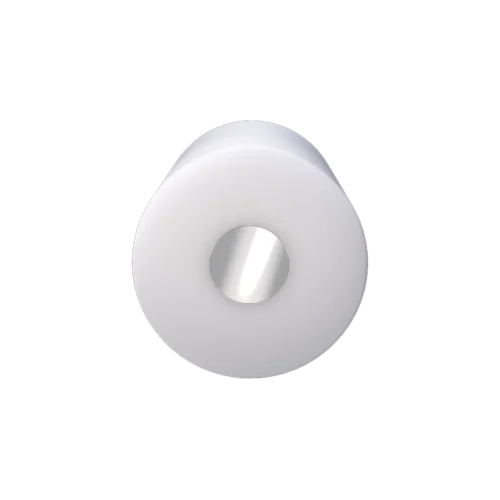

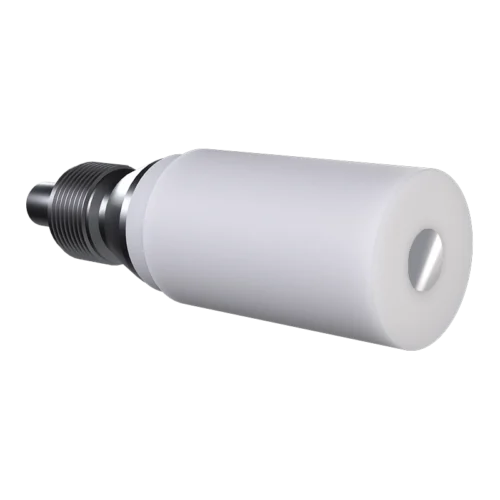

E5 Series Rotating Disk Electrode, 1018 (A576) Carbon Steel, PTFE shroud

Part #: AFE5T050S2 · Electrocatalysis · RDE/RRDE

The E5 rotating disk electrode (RDE) tips are one of the most popular series of RDEs manufactured by Pine Research. Simply screw the tip onto the shaft and you are ready to use it for rotating disk experiments. The E5 series tips are versatile because you can have many tips, of different disk and shroud materials, that interface to one RDE shaft, such as the standard RDE shaft , compatible with the MSR Rotator family of instruments. The disk electrode is permanently-sealed within the insulating shroud material. These electrodes are precision-machined and can enjoy a long life if used and cared for properly. Pine Research offers many different disk materials and these RDEs are available in PTFE and PEEK shrouds.

Product Information

Important Product Warnings and Notices

Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.

Product Specifications

The specifications of this product, and any other product that may be included in a kit or bundle, or a part that is included with this product, are listed below.
E5 Series Rotating Disk Electrode, 1018 (A576) Carbon Steel, PTFE shroud

Working Electrodes

Disk Electrodes
Disk electrode style
Fixed Disk
Disk material
1018 (A576) Carbon Steel
Disk crystal lattice
polycrystalline
Disk material purity
100%
Disk finish
Mirror Polish
Disk diameter
5 mm
Disk type
Fixed (embedded in electrode tip)
Disk series compatibility
None (Fixed Disk)
Electrode Tips
Tip maximum rotation rate
3000 RPM
Tip shroud material
PTFE
Tip shroud diameter
15 mm
Tip shroud length
25.4 mm
Tip length (overall)
49 mm
Rotating Electrodes
Maximum rotation rate
3000 RPM
Shaft compatibility
RDE Shaft for ASR Rotator (AFE5A), RDE/RRDE Precision Shaft for MSR Rotator (AFE6MB), RDE/RRDE Shaft for MSR Rotator (AFE6M), RDE/RRDE Shaft for WaveVortex 10 Rotator, Non-Rotating RDE Shaft (AFE5F)
Rotating electrode type
Fixed Disk Tip
Compatible electrode rotator(s)
ASR Rotator (AFASR), MSRX Rotator (AFMSRX), MSR Rotator (AFMSRCE), MSR evo Rotator (AFMSR24), WaveVortex 10 Rotator (AF01WV10)
General
Electrode series
E5
Thermal stability range
10°C - 25°C
Electrode use/application
Rotating Disk (RDE)
