E5 Series Rotating Disk Electrode, Basal-Plane Pyrolytic Graphite (GB), PTFE shroud
Part Number
AFE5T050GB

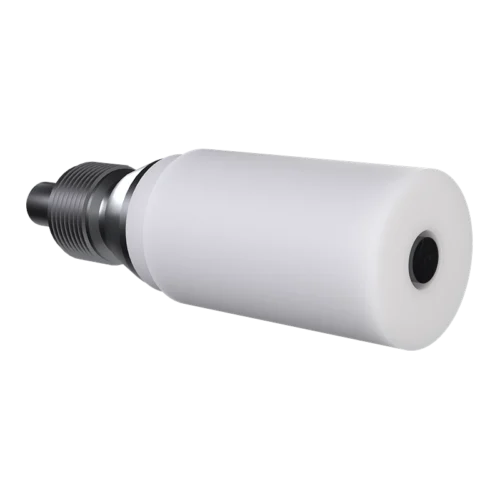

The E5 rotating disk electrode (RDE) tips are one of the most popular series of RDEs manufactured by Pine Research. Simply screw the tip onto the shaft and you are ready to use it for rotating disk experiments. The E5 series tips are versatile because you can have many tips, of different disk and shroud materials, that interface to one RDE shaft, such as the standard RDE shaft, compatible with the MSR Rotator family of instruments. The disk electrode is permanently-sealed within the insulating shroud material. These electrodes are precision-machined and can enjoy a long life if used and cared for properly. Pine Research offers many different disk materials and these RDEs are available in PTFE and PEEK shrouds.

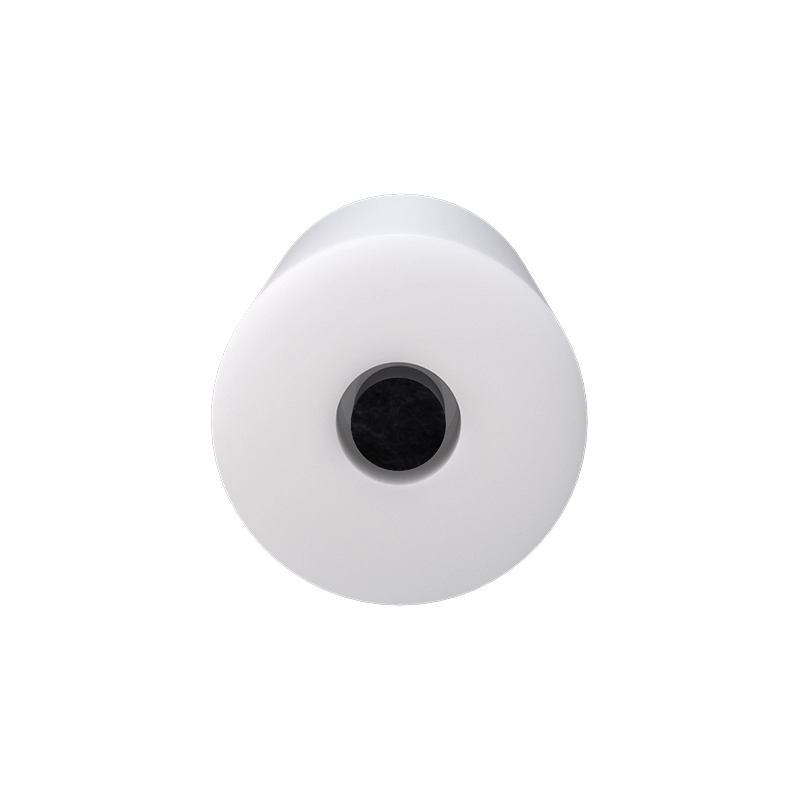

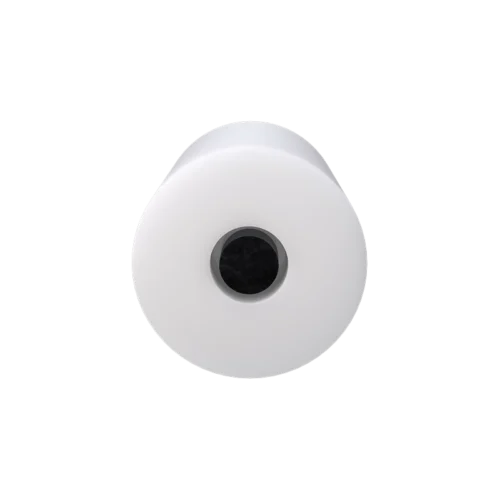

The pyrolytic graphite disk has an overall diameter of 5 mm, but it is encapsulated within an epoxy shroud making the inner diameter of the pyrolytic graphite itself ~3.8 mm. The epoxy is also incompatible with most non-aqueous solvents, meaning this product is only recommended for use in aqueous media.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
The E5 rotating disk electrode (RDE) tips are one of the most popular series of RDEs manufactured by Pine Research. Simply screw the tip onto the shaft and you are ready to use it for rotating disk experiments. The E5 series tips are versatile because you can have many tips, of different disk and shroud materials, that interface to one RDE shaft, such as the standard RDE shaft, compatible with the MSR Rotator family of instruments. The disk electrode is permanently-sealed within the insulating shroud material. These electrodes are precision-machined and can enjoy a long life if used and cared for properly. Pine Research offers many different disk materials and these RDEs are available in PTFE and PEEK shrouds.
The pyrolytic graphite disk has an overall diameter of 5 mm, but it is encapsulated within an epoxy shroud making the inner diameter of the pyrolytic graphite itself ~3.8 mm. The epoxy is also incompatible with most non-aqueous solvents, meaning this product is only recommended for use in aqueous media.
Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
Working Electrodes
General
Rotating Electrodes
Maximum rotation rate
Shaft compatibility
Rotating electrode type
Compatible electrode rotator(s)
Electrode Tips
Disk Electrodes
Disk electrode style
Disk material
Disk crystal lattice
polycrystalline
Disk material purity
99.999%
Disk finish
Mirror Polish
Disk diameter
Disk type
Disk series compatibility
None (Fixed Disk)
