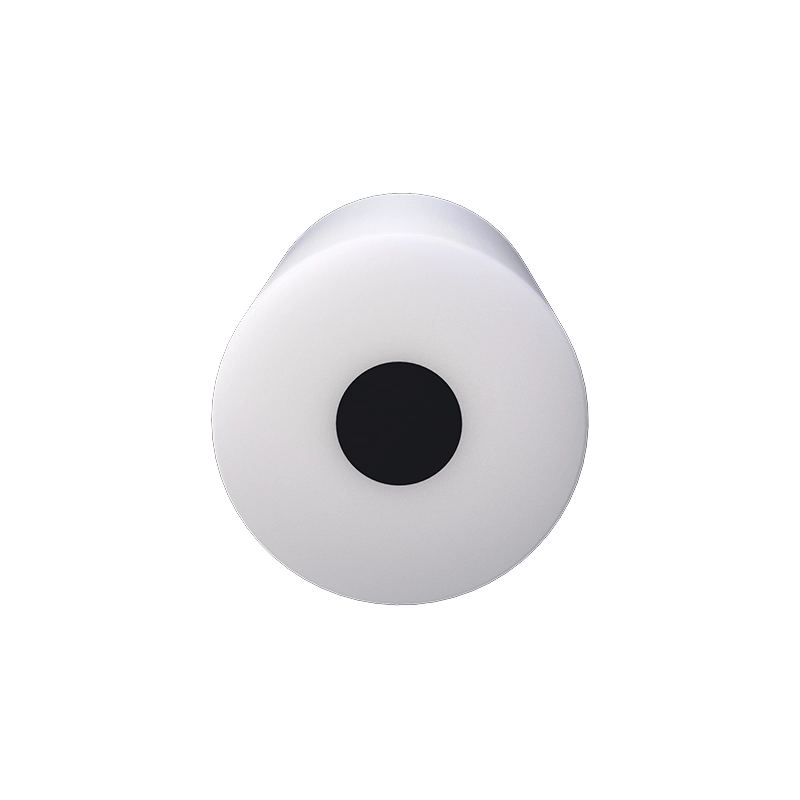

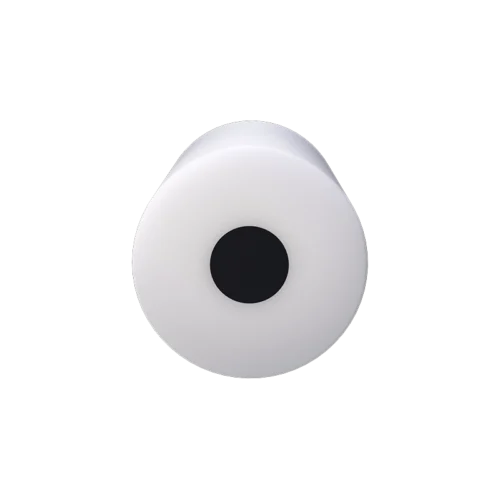

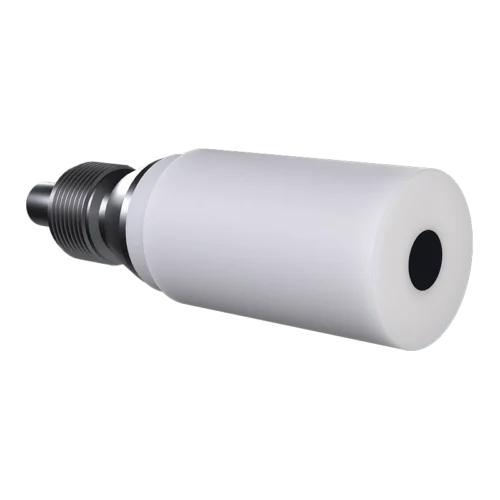

E5 Series Rotating Disk Electrode, Glassy Carbon (GC), PTFE shroud
Part Number
AFE5T050GC
The E5 rotating disk electrode (RDE) tips are one of the most popular series of RDEs manufactured by Pine Research. Simply screw the tip onto the shaft and you are ready to use it for rotating disk experiments. The E5 series tips are versatile because you can have many tips, of different disk and shroud materials, that interface to one RDE shaft, such as the standard RDE shaft, compatible with the MSR Rotator family of instruments. The disk electrode is permanently-sealed within the insulating shroud material. These electrodes are precision-machined and can enjoy a long life if used and cared for properly. Pine Research offers many different disk materials and these RDEs are available in PTFE and PEEK shrouds.
Related Product Bundles
This product is available in related bundles. View related bundles in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
Available in these Bundles
This product is available as part of a product bundle (a combination of products that are compatible and often sold together for convenience).
Ungrouped
Bundle Name / Part #
Price
Complete RDE System Bundle: WaveNow Wireless, MSR evo, E5 Series RDE
[WNW-MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveNow Wireless, WaveVortex 10, E5 Series RDE
[WNW-WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveNow XV, MSR evo, E5 Series RDE
[WNXV-MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveNow XV, WaveVortex 10, E5 Series RDE
[WNXV-WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
RDE System Bundle: WaveVortex 10, E5 Series RDE
[WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
RDE System Bundle: MSR evo, E5 Series RDE
[MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 100, MSR evo, E5 Series RDE
[WD100-MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 100, WaveVortex 10, E5 Series RDE
[WD100-WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 200, MSR evo, E5 Series RDE
[WD200-MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 200, WaveVortex 10, E5 Series RDE
[WD200-WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 40, WaveVortex 10, E5 Series RDE
[WD40-WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 40, MSR evo, E5 Series RDE
[WD40-MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
E5 Series Rotating Disk Electrode, Glassy Carbon (GC), PTFE shroud
Working Electrodes
Disk Electrodes
Product Disk electrode style
Fixed Disk
Product Disk material
Glassy Carbon (GC)
Product Disk crystal lattice
polycrystalline
Product Disk material purity
100%
Product Disk finish
Mirror Polish
Product Disk diameter
5 mm
Product Disk type
Fixed (embedded in electrode tip)
Product Disk series compatibility
None (Fixed Disk)
Electrode Tips
Product Tip maximum rotation rate
3000 RPM
Product Tip shroud material
PTFE
Product Tip shroud diameter
15 mm
Product Tip shroud length
25.4 mm
Product Tip length (overall)
49 mm
Rotating Electrodes
Product Maximum rotation rate
3000 RPM
Product Shaft compatibility
Non-Rotating RDE Shaft (AFE5F), RDE Shaft for ASR Rotator (AFE5A), RDE/RRDE Precision Shaft for MSR Rotator (AFE6MB), RDE/RRDE Shaft for MSR Rotator (AFE6M), RDE/RRDE Shaft for WaveVortex 10 Rotator
Product Rotating electrode type
Fixed Disk Tip
Product Compatible electrode rotator(s)
ASR Rotator (AFASR), MSR evo Rotator (AFMSR24), MSR Rotator (AFMSRCE), MSRX Rotator (AFMSRX), WaveVortex 10 Rotator (AF01WV10)
General
Product Electrode series
E5
Product Thermal stability range
10°C - 25°C
Product Electrode use/application
Rotating Disk (RDE)
