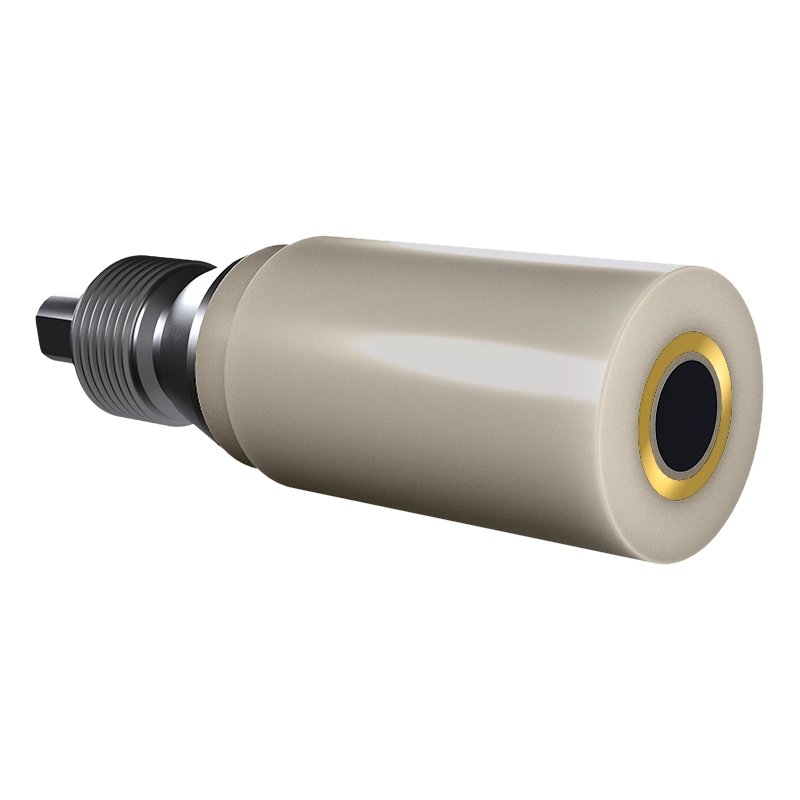

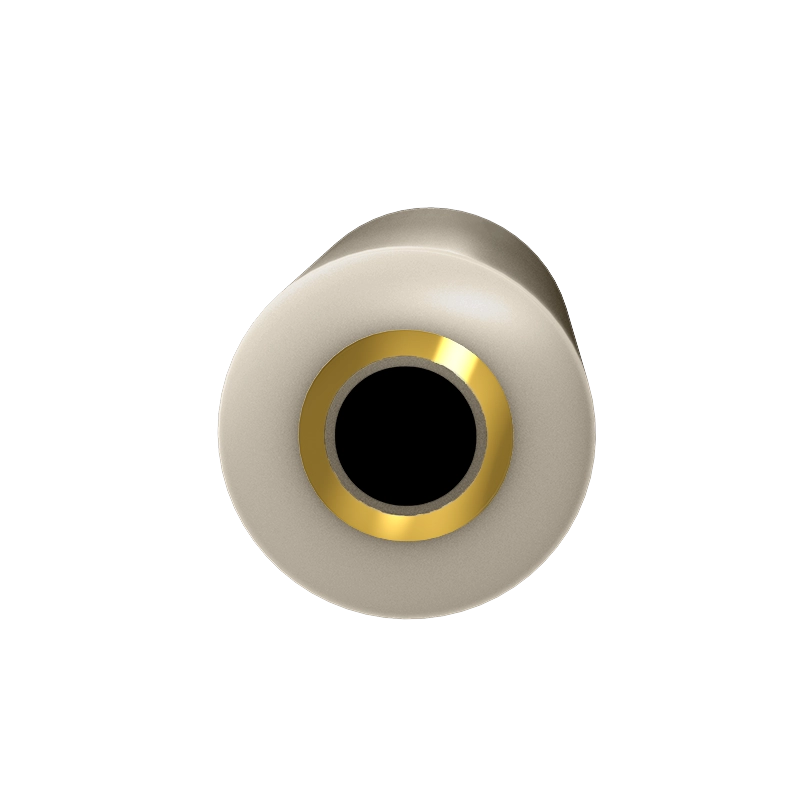

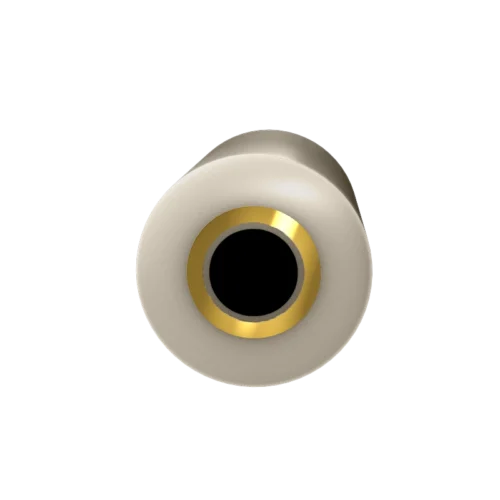

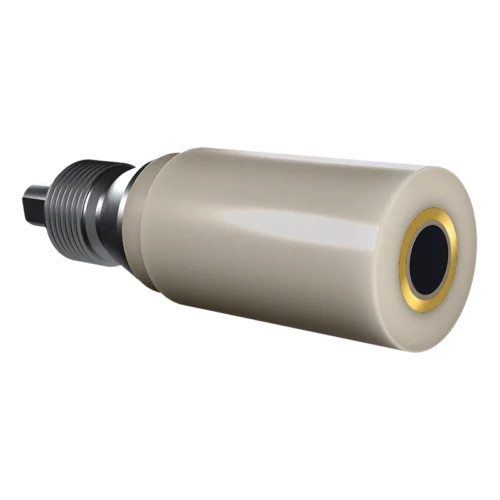

E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode, Glassy Carbon (GC) Disk, Gold (Au) Ring, PEEK separator/shroud

Part Number
AFE6R2GCAU
E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode, Glassy Carbon (GC) Disk, Gold (Au) Ring, PEEK separator/shroud
E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode, Glassy Carbon (GC) Disk, Gold (Au) Ring, PEEK separator/shroud
E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode, PEEK separator/shroud

The E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode (RRDE) tip is often used for electrocatalyst-based research such as oxygen reduction reaction (ORR) experiments. This high quality, precision RRDE tip is Fixed-Disk style, which means the disk electrode is fixed in position and cannot be removed or changed. The ring electrode is also permanently-fixed into position and cannot be removed. The RRDE tip has a PEEK separator between disk and ring, and a PEEK shroud. This tip threads into compatible shafts and is not designed to be used by itself. Many other configurations of RRDE tips are also available.

Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Categories
Electrodes > Working > Rotating Ring-Disk (RRDE)
Tags
,
Applications
Electrocatalysis, RDE/RRDE
Important
Specifications
SDS
Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Shafts sold separately.
Given the wide range of electrodes we offer, where each series requires one of several rotating shafts, shafts must be purchased separately for the MSR and MSR evo rotators. Consult the RDE, RRDE, and/or RCE specifications to learn which shaft is compatible.
Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.
Working Electrodes
General
Electrode series
E6R2
Thermal stability range
10°C - 80°C
Electrode use/application
Rotating Ring-Disk (RRDE)
Rotating Electrodes
Maximum rotation rate
3000 RPM
Shaft compatibility
RDE/RRDE Precision Shaft for MSR Rotator (AFE6MB), RDE/RRDE Shaft for MSR Rotator (AFE6M), RDE/RRDE Shaft for WaveVortex 10 Rotator
Rotating electrode type
Fixed Disk Tip
Compatible electrode rotator(s)
ASR Rotator (AFASR), MSRX Rotator (AFMSRX), MSR Rotator (AFMSRCE), MSR evo Rotator (AFMSR24), WaveVortex 10 Rotator (AF01WV10)
Electrode Tips
Tip maximum rotation rate
3000 RPM
Tip shroud material
PEEK
Tip shroud diameter
15 mm
Tip shroud length
25.4 mm
Tip length (overall)
49 mm
Disk Electrodes
Disk electrode style
Fixed Disk
Disk material
Glassy Carbon (GC)
Disk crystal lattice
polycrystalline
Disk material purity
100%
Disk finish
Mirror Polish
Disk diameter
5.5 mm
Disk type
Fixed (embedded in electrode tip)
Disk series compatibility
None (Fixed Disk)
Ring Electrodes
Ring material
Gold (Au)
Ring crystal lattice
Polycrystalline
Ring material purity
99.99%
Ring finish
Mirror Polish
Ring outer diameter
8.5 mm
Ring inner diameter
6.5 mm
Ring thickness
1 mm
Ring disk gap
0.5 mm
Ring disk separator material
PEEK
Collection efficiency
38.3%
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Material Group
Material Name
Actions
Carbon Materials
Glassy Carbon (GC)
Download
Elemental Metals
Gold (Au)
Download

Related Products and Accessories

The following products are available separately and are compatible with E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode, Glassy Carbon (GC) Disk, Gold (Au) Ring, PEEK separator/shroud.
