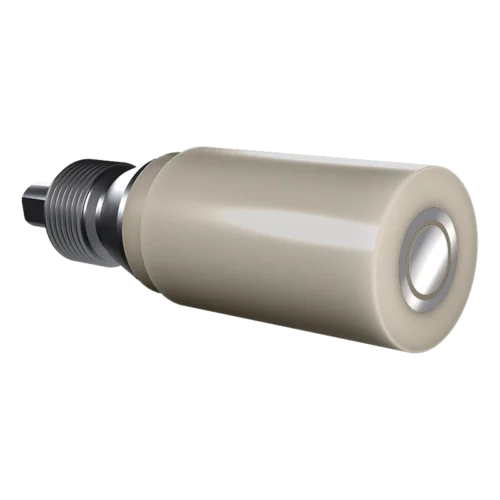

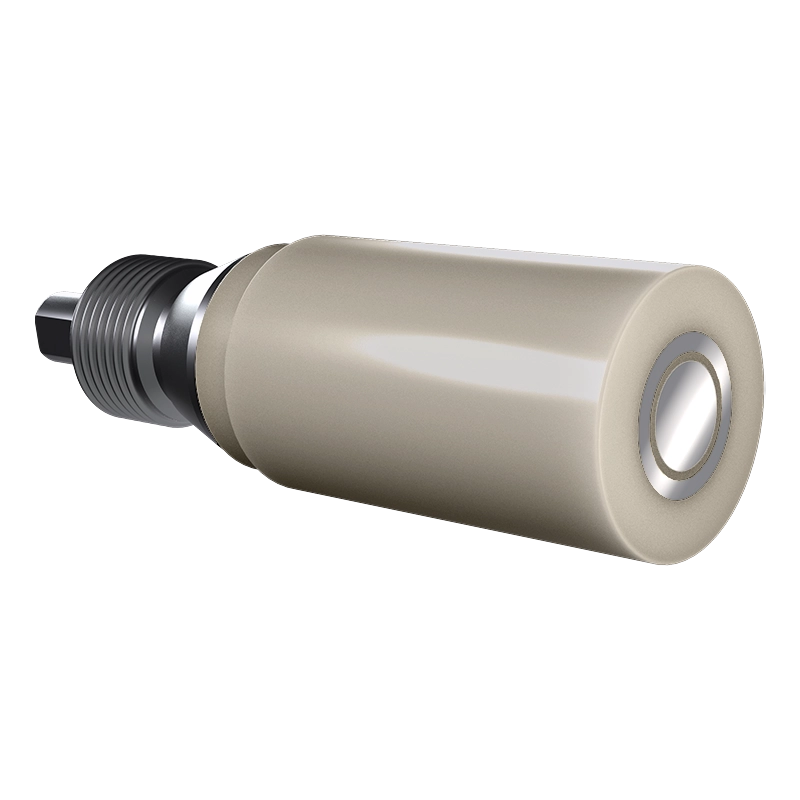

E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode, Platinum (Pt) Disk, Platinum (Pt) Ring, PEEK separator/shroud
The E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode (RRDE) tip is often used for electrocatalyst-based research such as oxygen reduction reaction (ORR) experiments. This high quality, precision RRDE tip is Fixed-Disk style, which means the disk electrode is fixed in position and cannot be removed or changed. The ring electrode is also permanently-fixed into position and cannot be removed. The RRDE tip has a PEEK separator between disk and ring, and a PEEK shroud. This tip threads into compatible shafts and is not designed to be used by itself. Many other configurations of RRDE tips are also available.
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
The E6R2 Series Fixed-Disk Rotating Ring-Disk Electrode (RRDE) tip is often used for electrocatalyst-based research such as oxygen reduction reaction (ORR) experiments. This high quality, precision RRDE tip is Fixed-Disk style, which means the disk electrode is fixed in position and cannot be removed or changed. The ring electrode is also permanently-fixed into position and cannot be removed. The RRDE tip has a PEEK separator between disk and ring, and a PEEK shroud. This tip threads into compatible shafts and is not designed to be used by itself. Many other configurations of RRDE tips are also available.
Never exceed maximum rotation rate when working with rotating electrodes.
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Given the wide range of electrodes we offer, where each series requires one of several rotating shafts, shafts must be purchased separately for the MSR and MSR evo rotators. Consult the RDE, RRDE, and/or RCE specifications to learn which shaft is compatible.
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.
