E7R8 Series Fixed-Disk ThinGap Rotating Ring-Disk Electrode, Gold (Au) Disk, Gold (Au) Ring, PTFE separator/shroud
Part Number
AFE7R8AUAU

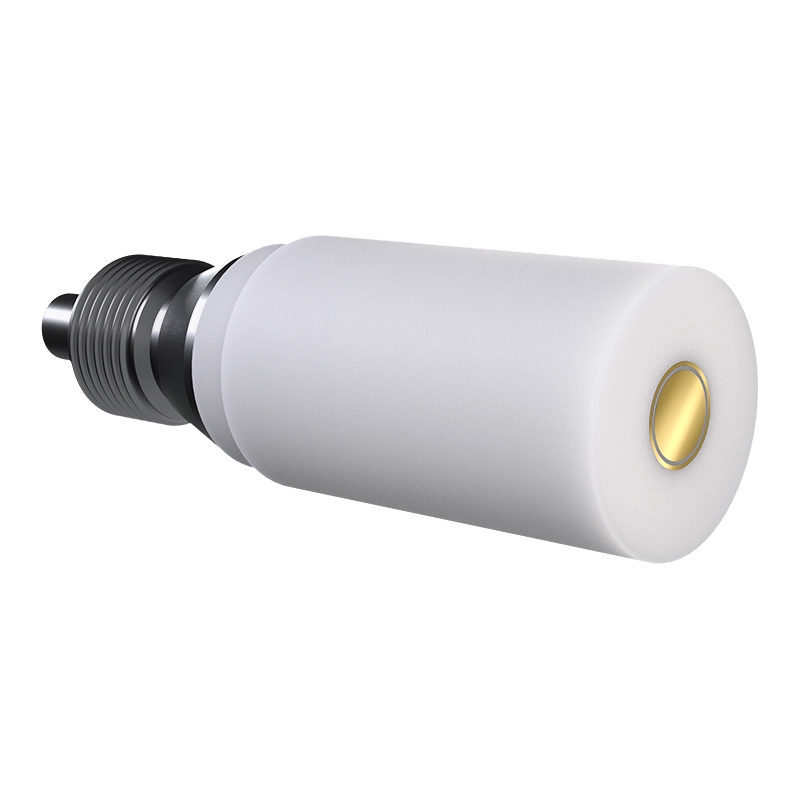

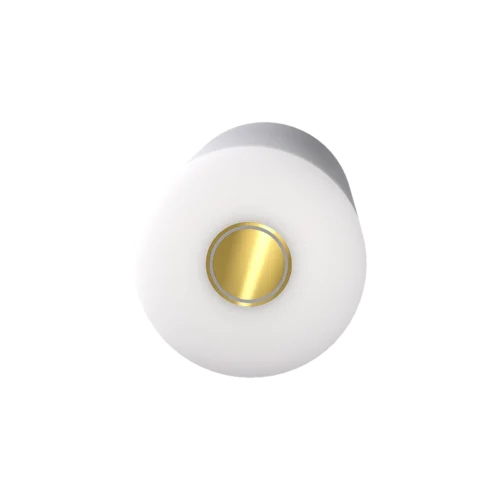

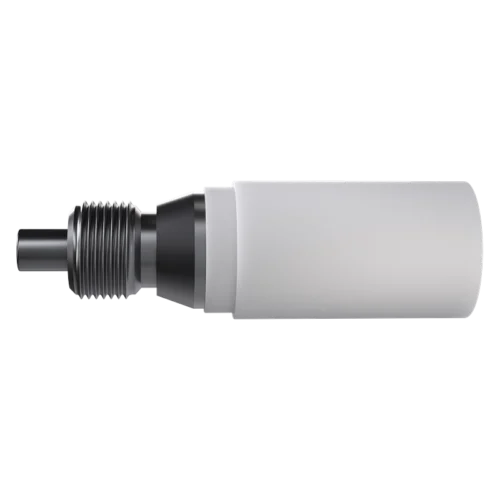

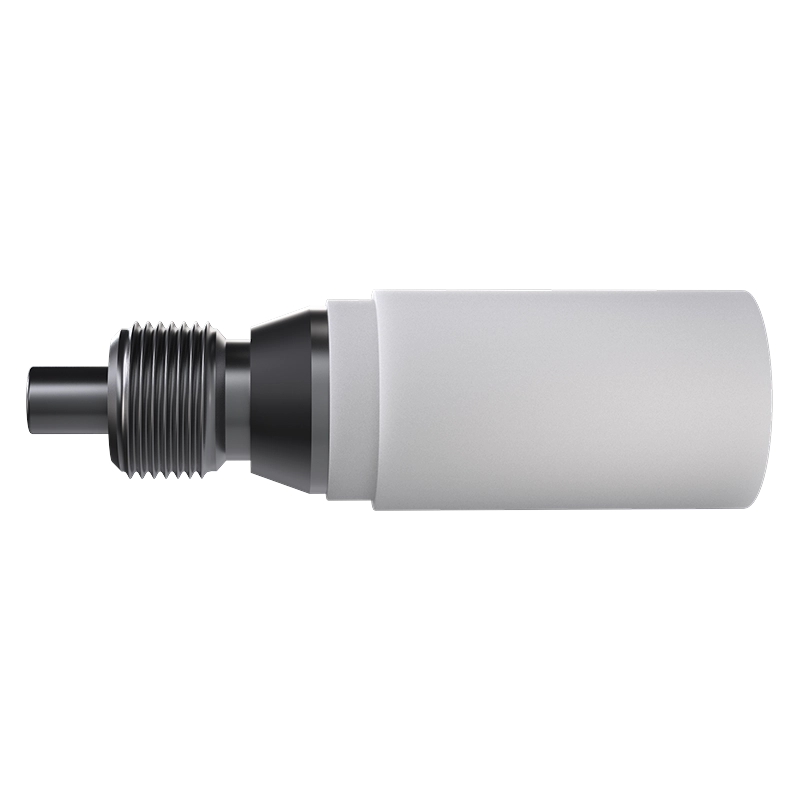

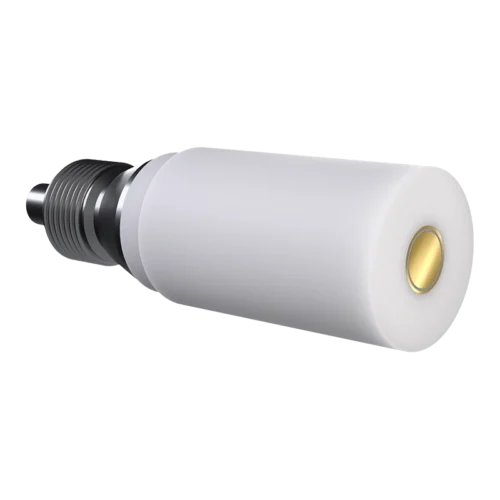

The E7R8 Series Fixed-Disk Rotating Ring-Disk Electrode (RRDE) tip is often used for electrocatalyst-based research such as oxygen reduction reaction (ORR) experiments. This high quality, precision RRDE tip is Fixed-Disk style, which means the disk electrode is fixed in position and cannot be removed or changed. The ring electrode is also permanently-fixed into position and cannot be removed. The RRDE tip features a sub-millimeter gap between the disk and ring and has a high collection efficiency. The E7R8 series has a thin PTFE separator between disk and ring, and a PTFE shroud. This tip threads into compatible shafts and is not designed to be used by itself. Many other configurations of RRDE tips are also available.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Shafts sold separately.
Given the wide range of electrodes we offer, where each series requires one of several rotating shafts, shafts must be purchased separately for the MSR and MSR evo rotators. Consult the RDE, RRDE, and/or RCE specifications to learn which shaft is compatible.
Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
Working Electrodes
General
Electrode series
Thermal stability range
10°C - 25°C
Electrode use/application
Rotating Ring-Disk (RRDE)
Rotating Electrodes
Maximum rotation rate
Shaft compatibility
Rotating electrode type
Compatible electrode rotator(s)
Electrode Tips
Disk Electrodes
Disk electrode style
Disk material
Disk crystal lattice
polycrystalline
Disk material purity
99.99%
Disk finish
Mirror Polish
Disk diameter
Disk type
Disk series compatibility
None (Fixed Disk)
- Hegemann, M.; Baltruschat, H.; Reinsberg, P.H. Oxygen Reduction in Mixed Calcium-Based Electrolytes. ChemElectroChem 2025, n/a, 2400448.
- Hegemann, M.; Bawol, P.P.; Köllisch-Mirbach, A.; Baltruschat, H. Mixed Lithium and Sodium Ion Aprotic DMSO Electrolytes for Oxygen Reduction on Au and Pt Studied by DEMS and RRDE. Electrocatalysis 2021, 12, 564-578.
