The Low Volume Cap Kit can be used in two configurations – either open or closed to the atmosphere. The cap kit has the option for sealing around all electrodes and probes in the cell with optimally-sized fluoroelastomer O-rings and a sealing mechanical cap. Fluoroelastomer (FKM) O-rings are not chemically compatible in all solvent systems. FKM provides good coverage of many commonly used solvents. Customers using more aggressive solvents are encouraged to source their own O-rings to suit their application. This cap kit is included with each Low Volume Cell Kit. Replacements can be purchased as a kit. The cap is machined from chemically-resistant PEEK polymer.
Product Kit
This product is sold as a kit, meaning it consists of multiple independent products used together. View the individual kit products in the tab below.
Related Product Kits
This product is available in related kits. View related kits in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
The Low Volume Cap Kit can be used in two configurations – either open or closed to the atmosphere. The cap kit has the option for sealing around all electrodes and probes in the cell with optimally-sized fluoroelastomer O-rings and a sealing mechanical cap. Fluoroelastomer (FKM) O-rings are not chemically compatible in all solvent systems. FKM provides good coverage of many commonly used solvents. Customers using more aggressive solvents are encouraged to source their own O-rings to suit their application. This cap kit is included with each Low Volume Cell Kit. Replacements can be purchased as a kit. The cap is machined from chemically-resistant PEEK polymer.
Products Included in this Kit
Product kits contain more than one product. Should you want more details or wish to order a replacement component, visit the product page below.
Qty
Product Name / Part #
Price
1
Low Volume Cell Cap Component: Bottom Part with 24/25 Taper
AC01CKT1004M01
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Low Volume Cell Cap Component: Top Part (Seal Cap)
AC01CKT1004M02
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
4
Low Volume Cell Cap Component: 6.4 mm OD Plug
AC01CKT1004M03
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Low Volume Cell Cap Component: 3.5 mm OD Plug
AC01CKT1004M04
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
2
O-Ring, Viton, Round, 3 mm OD
KAA030VM
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
8
O-Ring, Viton, Round, 6 mm OD
KAA060VM
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
8
O-Ring, Viton, Round, 7 mm OD
KAA070VM
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
2
O-Ring, Viton, Round, 20 mm OD
KAA200VM
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
3

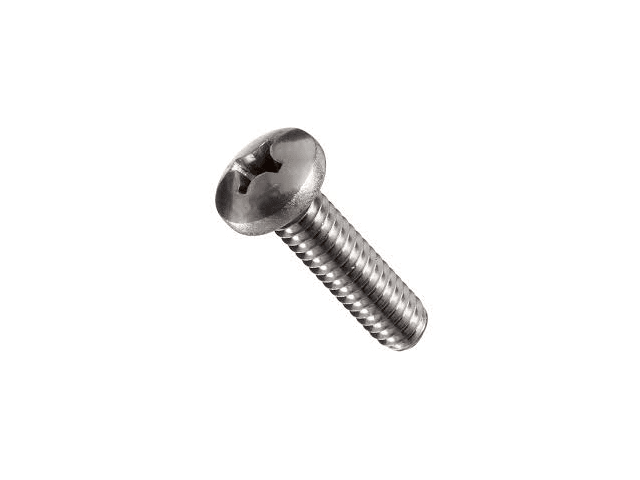

Low Volume Cell Cap Component: Cap Screw (Screw Only)
KSM0440P08PS
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Included in these Kits
This product is included in one or more kits. Below is a list of kits that contain this product.
Kit Name / Part #
Price
Advanced Luggin Low Volume Membrane Cell Kit
AFCKT1031
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Advanced Low Volume Membrane Cell Kit
AF01CKT1027
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
H-Cell Kit, Low Volume
AF01CKT1007
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Three Electrode Cell Kit, Low Volume, Alkaline Resistant
AF01CKT1003
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Separated Cell Kit, Low Volume
AF01CKT1008
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Three Electrode Cell Kit, Low Volume
AF01CKT1006
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Low Volume Cell Series Cap Kit
Product Kits
Product Product kit
Yes
Product Cell kit type
Aggregate (various parts sold together)
Product Kit includes
Cell cap, Cell cap kit, O-rings, Plugs, Screws
O-Ring, Viton, Round, 3 mm ODView Product
O-Ring Dimensions
Product O-ring material
Viton®
Product O-ring cross section shape
Round
Product O-ring outer diamter (OD)
5 mm
Product O-ring inner diamter (ID)
3 mm
Product O-ring width (W)
1 mm
O-Ring, Viton, Round, 6 mm ODView Product
O-Ring Dimensions
Product O-ring material
Viton®
Product O-ring cross section shape
Round
Product O-ring outer diamter (OD)
8 mm
Product O-ring inner diamter (ID)
6 mm
Product O-ring width (W)
1 mm
O-Ring, Viton, Round, 7 mm ODView Product
O-Ring Dimensions
Product O-ring material
Viton®
Product O-ring cross section shape
Round
Product O-ring outer diamter (OD)
9 mm
Product O-ring inner diamter (ID)
7 mm
Product O-ring width (W)
1 mm
O-Ring, Viton, Round, 20 mm ODView Product
O-Ring Dimensions
Product O-ring material
Viton®
Product O-ring cross section shape
Round
Product O-ring outer diamter (OD)
22 mm
Product O-ring inner diamter (ID)
20 mm
Product O-ring width (W)
1 mm
- Bard, A.J.; Faulkner, L.R.; White, H.S. Electrochemical Methods: Fundamentals and Applications, 3rd; John Wiley & Sons, Ltd, 2022.
- Esrafilzadeh, D.; Zavabeti, A.; Jalili, R.; Atkin, P.; Choi, J.; Carey, B.J.; Brkljača, R.; O’Mullane, A.P.; Dickey, M.D.; Officer, D.L.; MacFarlane, D.R.; Daeneke, T.; Kalantar-Zadeh, K. Room temperature CO2 reduction to solid carbon species on liquid metals featuring atomically thin ceria interfaces. Nat. Commun. 2019, 10, 865.
- Ashok, A.; Kumar, A.; Ponraj, J.; Mansour, S.A.; Tarlochan, F. Single Step Synthesis of Porous NiCoO2 for Effective Electrooxidation of Glycerol in Alkaline Medium. J. Electrochem. Soc. 2018, 165, J3301-J3309.
- Orazem, M.E.; Tribollet, B. Electrochemical impedance spectroscopy, 2nd; John Wiley & Sons, Inc., 2017.
- Leddy, J.; Paschkewitz, T.M. Ammonia production using bioelectrocatalytical devices. USPTO, US9506085B2, 2016.
- Baker, P.A.; Goltz, M.N.; Schrand, A.M.; Yoon, D.Y.; Kim, D. Organophosphate vapor detection on gold electrodes using peptide nanotubes. Biosens. Bioelectron. 2014, 61, 119–123.
- Paschkewitz, T. Ammonia Production at Ambient Temperature and Pressure. Ph.D. Dissertation, University of Iowa, 2012.
