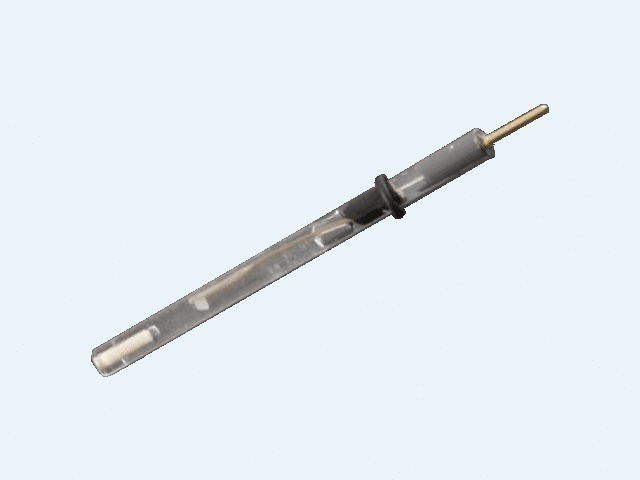

Reference Electrode, Silver/Silver Chloride, LowProfile, 60 mm Long
Part Number
RRPEAGCL2
These LowProfile reference electrodes are useful for many applications and well-suited for use with our Honeycomb Spectroelectrochemical Cell Kit. The low cost of these reference electrodes also make them ideal for nearly any aqueous-based application. These electrodes are permanently sealed with a KCl gel electrolyte, comprised of a mixture of potassium chloride, glycerol, and cellulose gum. Each electrode includes an O-ring. We offer this electrode in several lengths.
Related Product Kits
This product is available in related kits. View related kits in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Compatibility Notice
Avoid using this reference electrode with the following: NH3 buffers, sulfides, perchlorates, non-aqueous/organic solvents, and alkaline solutions stronger than 0.1M OH–.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.
Included in these Kits
This product is included in one or more kits. Below is a list of kits that contain this product.
Kit Name / Part #
Price
Honeycomb Spectroelectrochemistry Cell Kit
AKSTCKIT3
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Reference Electrode, Silver/Silver Chloride, LowProfile, 60 mm Long
Reference Electrodes
Product Reference chemistry
Ag/AgCl
Product Standard potential
+199 mV vs NHE
Product Reference size type
LowProfile (3.4 - 3.5 mm OD)
Product Reference electrode length
60 mm
Product External fill solution
4 M KCl gel
Product Refillable
no
Product Typical variance
±3 - 5 mV
Product Typical input impedance
< 10 kΩ
Product Reference electrode body material
borosilicate glass
Electrochemical Cell
Product Frit material
ceramic
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Reference Electrode Filling Solutions
Saturated Potassium Chloride Gel (KCl)
