AfterMath Blue EIS Circuits: Custom Models and Descriptor Syntax

Article Details

1. Selecting an EIS Circuit

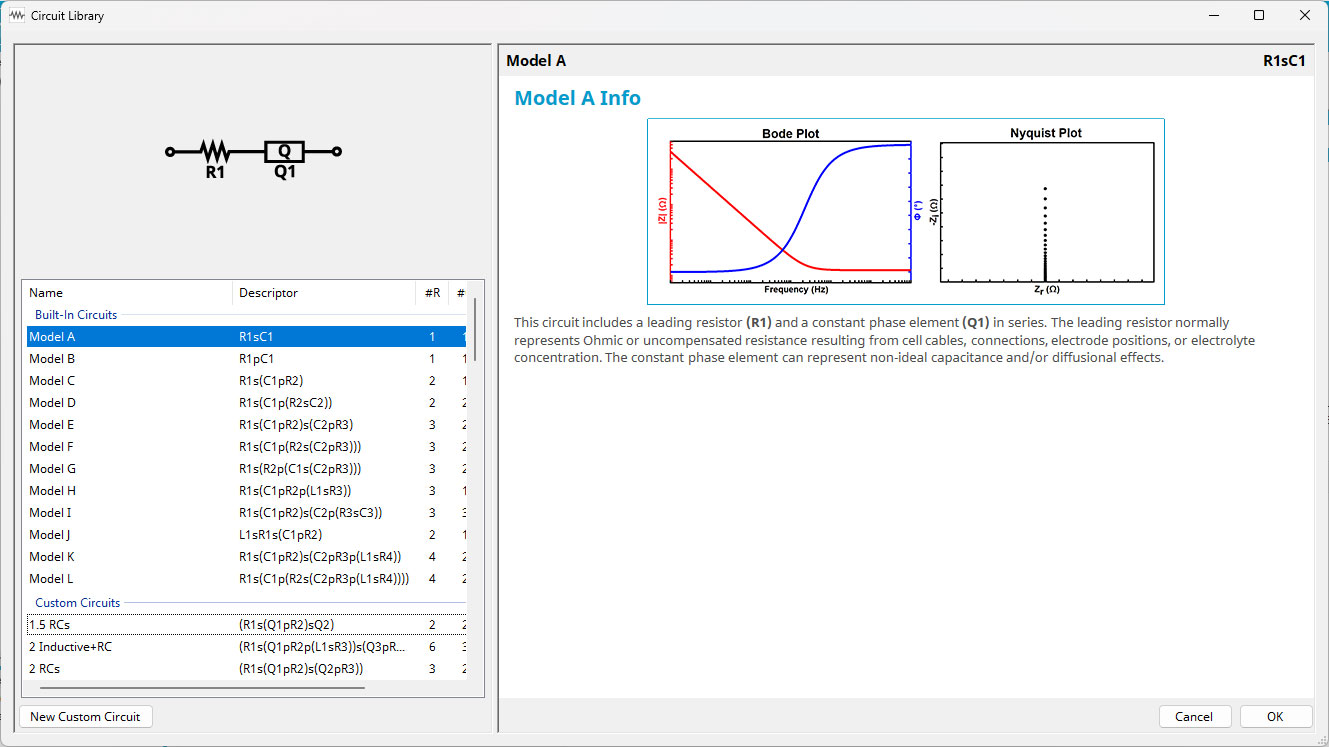

When performing an EIS Circuit Fit or Circuit Simulation in AfterMath Blue, the user has two options: (1) select a circuit from the set of Built-In Circuits; or (2) construct a User-Defined Circuit. Upon adding the new Circuit Fit or Circuit Simulation node, the Circuit Library window will appear, as shown below:

EIS Circuit Library in AfterMath Blue
EIS Circuit Library in AfterMath Blue

Any previously-saved User-Defined Circuits will appear in the bottom section and may be selected again. Double-clicking on any circuit in either list will select that circuit for fitting or simulation.

2. User-Defined Circuits: GUI

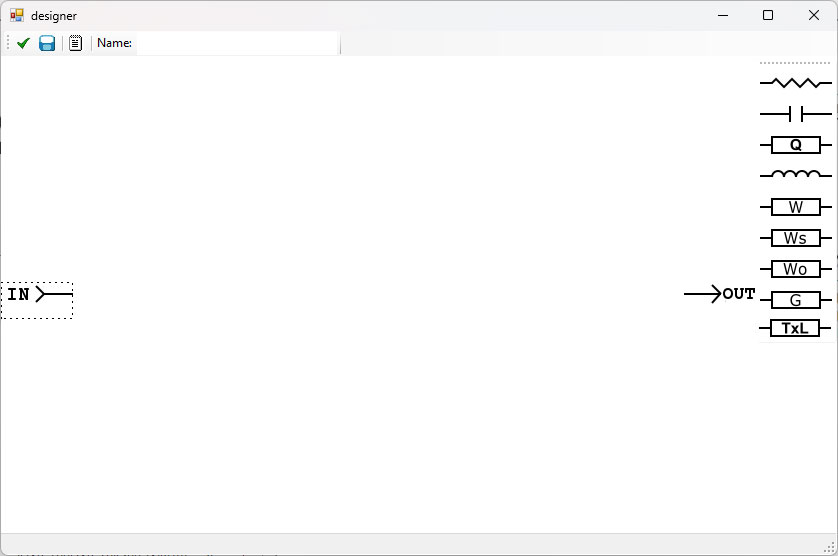

The most common method of constructing a new User-Defined Circuit is by clicking "New Custom Circuit," then using the graphical user interface (GUI) in the circuit designer window that appears, as shown below:

AfterMath Blue Circuit Designer Window
AfterMath Blue Circuit Designer Window

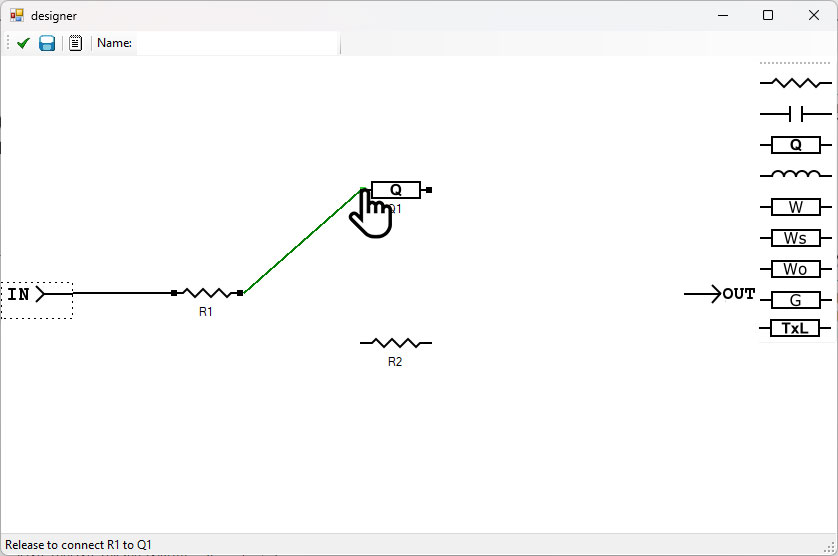

Circuit elements can be dragged-and-dropped from the right side into the blank space, then the left and right terminals connected as desired to form a custom circuit, as shown below:

Drawing Custom Circuits with AfterMath Blue Circuit Designer GUI
Drawing Custom Circuits with AfterMath Blue Circuit Designer GUI

Once the circuit has been drawn and all terminals connected as desired, it is good practice to verify the circuit is valid. The checkbox at the top left of the designer window can be clicked, and AfterMath Blue will indicate whether the circuit is valid (first figure below) or invalid (second figure below), including what issues must be rectified.

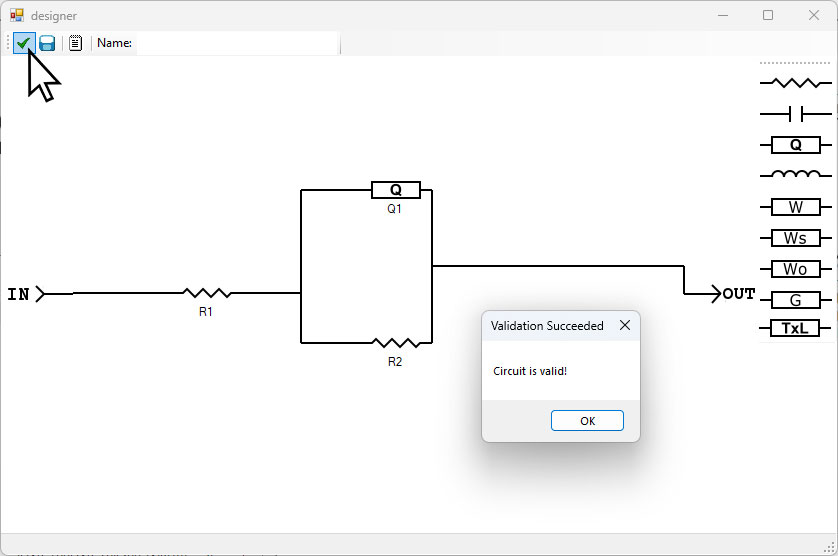

AfterMath Blue Custom Circuit Validation Check with Valid Circuit
AfterMath Blue Custom Circuit Validation Check with Valid Circuit

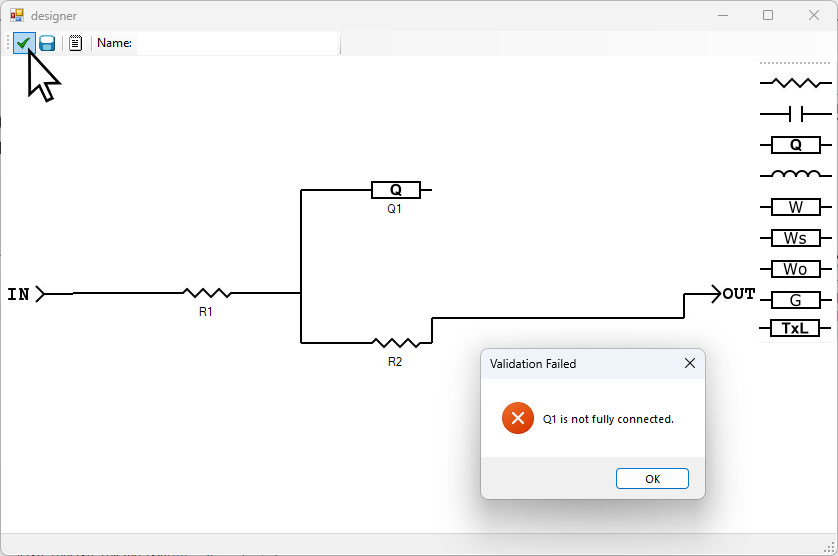

AfterMath Blue Custom Circuit Validation Check with Invalid Circuit
AfterMath Blue Custom Circuit Validation Check with Invalid Circuit

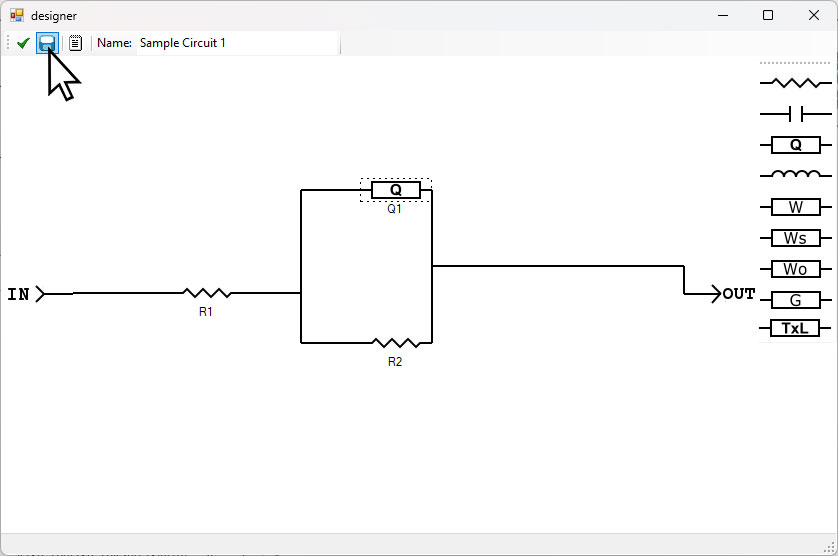

If the circuit is valid, it can be saved. A name must be given in the box at the top labeled "Name:," then the save icon can be clicked, as shown below:

Saving Custom Circuits in AfterMath Blue
Saving Custom Circuits in AfterMath Blue

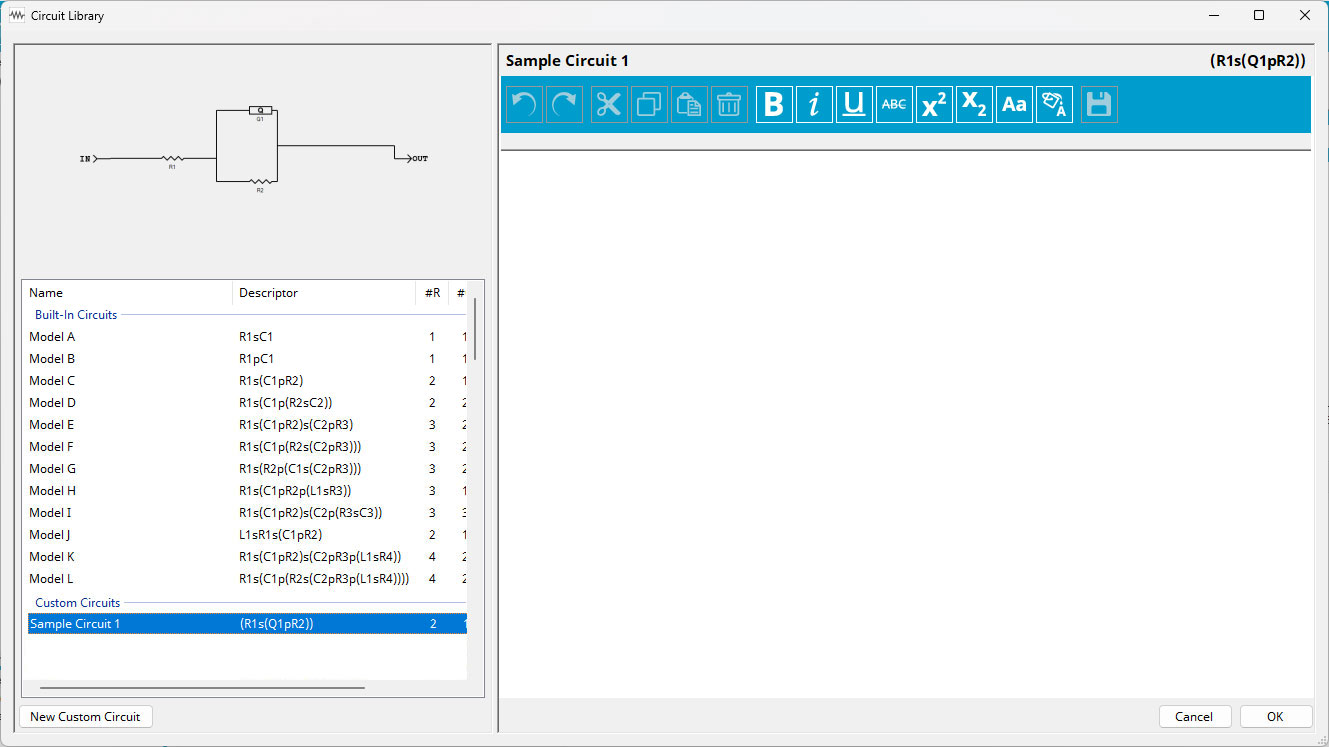

After saving the circuit, the X in the upper right of the designer window can be clicked, and then the custom circuit will be visible in the list of User-Defined Circuits, as shown below. This circuit can now be selected for fitting or simulation.

Circuit Library with Saved Custom Circuit
Circuit Library with Saved Custom Circuit

3. User-Defined Circuits: Descriptor Entry and Syntax

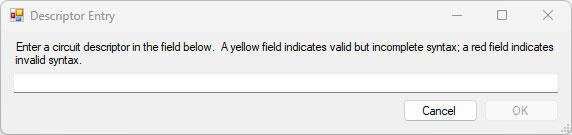

An alternate way to create a User-Defined Circuit is by using the notepad icon at the top of the designer window. When this icon is clicked, a Descriptor Entry window appears. In this window, a circuit can be added manually by typing in the appropriate syntax (see below).

AfterMath Blue EIS Circuit Descriptor Entry Syntax Window
AfterMath Blue EIS Circuit Descriptor Entry Syntax Window

Each circuit in the AfterMath Blue Circuit Library, whether Built-In or User-Defined, has both a Descriptor and a Name. These fields cannot be changed for the Built-In Circuits. When creating a User-Defined Circuit using the GUI, a unique name must be given to save the circuit into the library, as shown previously. Additionally, a Descriptor will be automatically generated from the drawn circuit.

When entering a circuit descriptor to create a custom circuit, the proper syntax must be used. The Descriptor Entry will alert the user while typing a circuit whether the circuit syntax is valid but incomplete (yellow), or invalid (red). Below are the rules for circuit syntax in AfterMath Blue:

Descriptor
Meaning
R
Resistor
C
Capacitor
Q
Constant Phase Element (CPE)
L
Inductor
W
Infinite Warburg
Ws
Warburg Short (or Warburg Absorbing)
Wo
Warburg Open (or Warburg Reflecting)
G
Gerischer Element
TxL
Transmission Line
s
in series (goes between circuit elements)
p
in parallel (goes between circuit elements)
parentheses ( )
groups circuit elements, similar to mathematics rules
Circuit Descriptor Syntax in AfterMath Blue


Transmission Line Circuits
It is advised to not create a custom circuit including a transmission line using the Descriptor Entry box. Create TxL elements using the GUI instead.


All circuit elements are accompanied by a number, and all elements must have a distinct name. For example, "R1", "R2", and "R3". It is also not required to start at the index of 1 for each element. Additionally, once any custom circuit has been created, whether via the Descriptor Entry box or the GUI, any individual circuit element can be renamed as desired.
