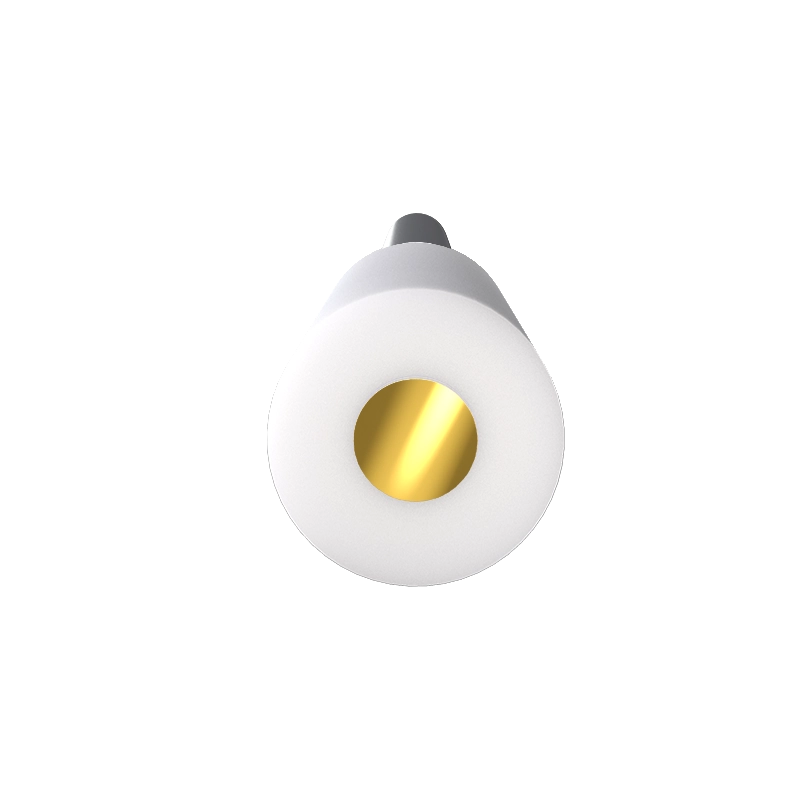

E1E Series Stationary Working Electrode, Gold (Au), PTFE shroud
Part Number
AFE1E050AU
The E1E series stationary working electrodes have been precision-machined to be high-quality working electrodes. They resemble the form factor of our classic E3 series RDE tips; however, the shaft and tip are permanently coupled and the shaft will not fit into a rotator. They are ideally designed for use with our Standard Three-Electrode Cell Kit. These electrodes feature a PTFE shroud and an inlaid disk geometry for the working electrode material.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
Working Electrodes
General
Electrode series
Thermal stability range
10°C - 25°C
Electrode use/application
Stationary (non-rotating)
Stationary Electrodes
Working electrode diameter
12 mm (shroud)
Electrode shroud material
Working electrode connection style
4 mm Banana Receptacle
Working size type
Electrode length
38.1 mm
Disk Electrodes
Disk electrode style
Disk material
Disk crystal lattice
polycrystalline
Disk material purity
99.99%
Disk finish
Mirror Polish
Disk diameter
Disk type
Disk series compatibility
None (Fixed Disk)
Electrode Shafts
Shaft length (overall)
152 mm (6 in)
Shaft shroud material
