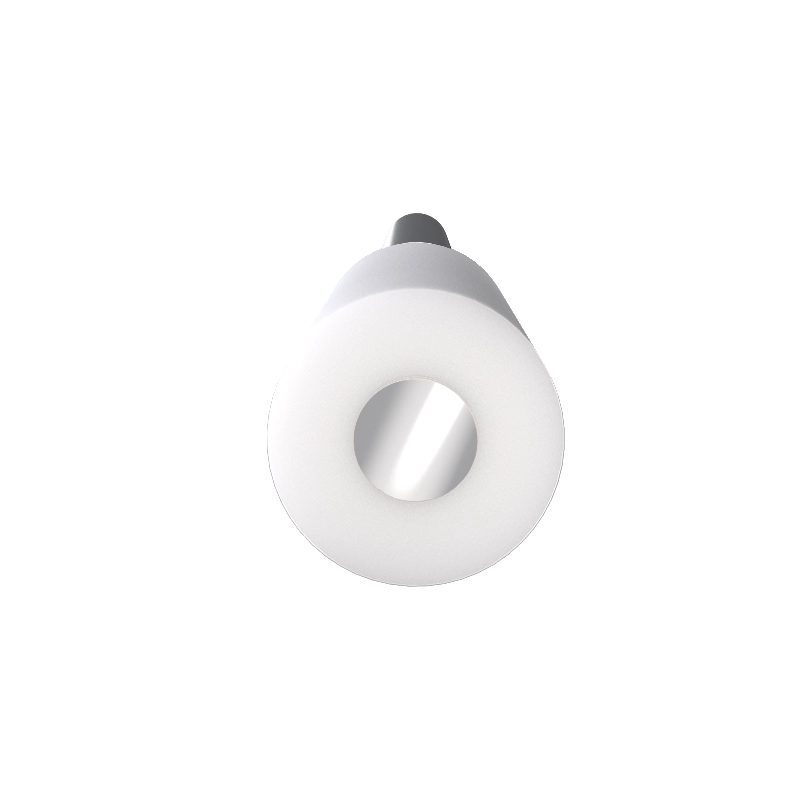

E1E Series Stationary Working Electrode, Platinum (Pt), PTFE shroud
Part Number
AFE1E050PT
The E1E series stationary working electrodes have been precision-machined to be high-quality working electrodes. They resemble the form factor of our classic E3 series RDE tips; however, the shaft and tip are permanently coupled and the shaft will not fit into a rotator. They are ideally designed for use with our Standard Three-Electrode Cell Kit. These electrodes feature a PTFE shroud and an inlaid disk geometry for the working electrode material.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
E1E Series Stationary Working Electrode, Platinum (Pt), PTFE shroud
Electrode Shafts
Product Shaft length (overall)
152 mm (6 in)
Product Shaft shroud material
N/A (No shroud)
Product Shaft rotator compatibility
None (not for use in a rotator)
Working Electrodes
Disk Electrodes
Product Disk electrode style
Fixed Disk
Product Disk material
Platinum (Pt)
Product Disk crystal lattice
polycrystalline
Product Disk material purity
99.99%
Product Disk finish
Mirror Polish
Product Disk diameter
5 mm
Product Disk type
Fixed (embedded in electrode tip)
Product Disk series compatibility
None (Fixed Disk)
Stationary Electrodes
Product Working electrode diameter
12 mm (shroud)
Product Electrode shroud material
PTFE
Product Working electrode connection style
4 mm Banana Receptacle
Product Working size type
Standard (9.5 mm – 12 mm OD)
Product Electrode length
38.1 mm
General
Product Electrode series
E1E
Product Thermal stability range
10°C - 25°C
Product Electrode use/application
Stationary (non-rotating)
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Elemental Metals
Platinum (Pt)
