E1P Series Stationary Working Electrode, Gold (Au), 150 mm length, PTFE shroud
Part Number
AFE1PAU150

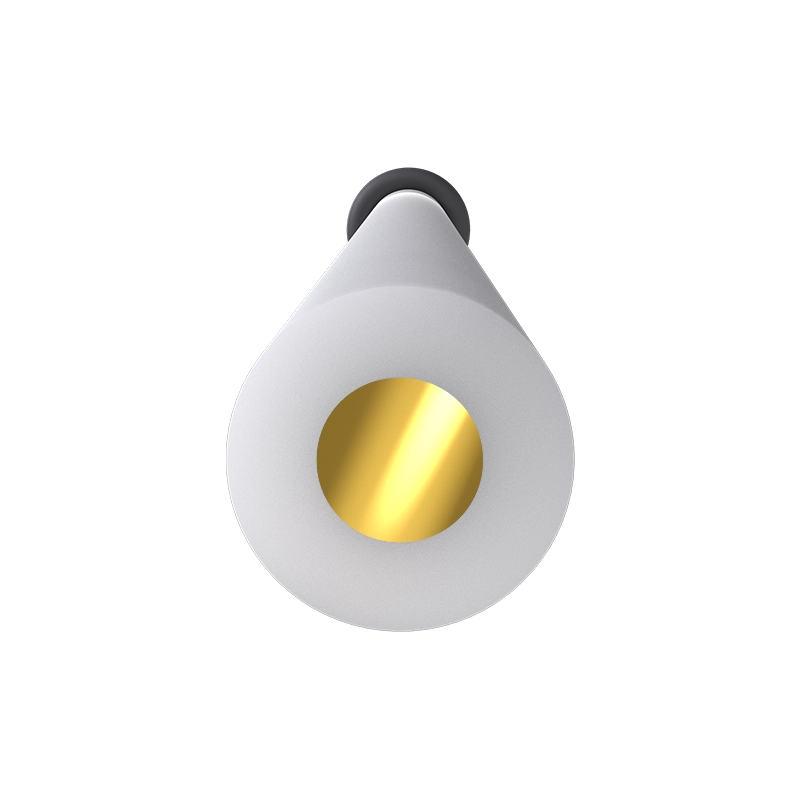

The E1P series stationary working electrode is a simple and cost-effective working electrode with a PTFE shroud. They are ideally designed for use with any of our Low Volume Cell Kits, where the electrode fits through the larger holes in the Low Volume Cell Cap Kit. These electrodes feature an inlaid disk geometry for the working electrode material. This 150 mm long electrode is also ideal for use with our Standard Three-Electrode Cell Kit.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
Working Electrodes
General
Electrode series
Thermal stability range
10°C - 25°C
Electrode use/application
Stationary (non-rotating)
Stationary Electrodes
Working electrode diameter
6.35 mm (shroud)
Electrode shroud material
Working electrode connection style
1.6 mm OD x 8.5 mm L brass pin
Working size type
Electrode length
150 mm
Disk Electrodes
Disk electrode style
Disk material
Disk crystal lattice
polycrystalline
Disk material purity
99.99%
Disk finish
Mirror Polish
Disk diameter
Disk type
Disk series compatibility
None (Fixed Disk)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Material Group
Material Name
Actions
