E1P Series Stationary Working Electrode, Glassy Carbon (GC), 150 mm length, PTFE shroud

Part #: AFE1PGC150 · Electrocatalysis

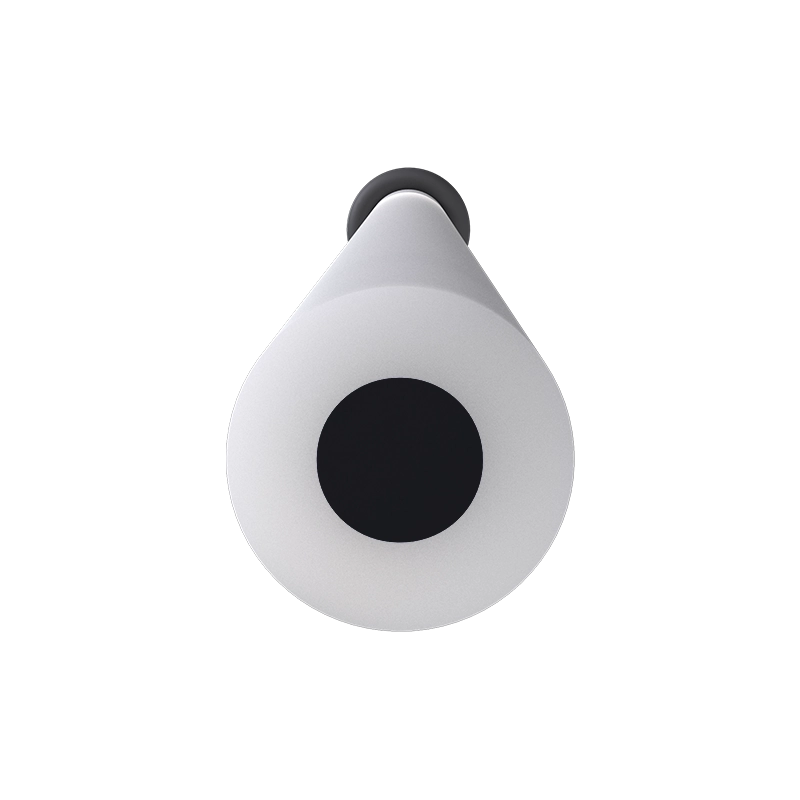

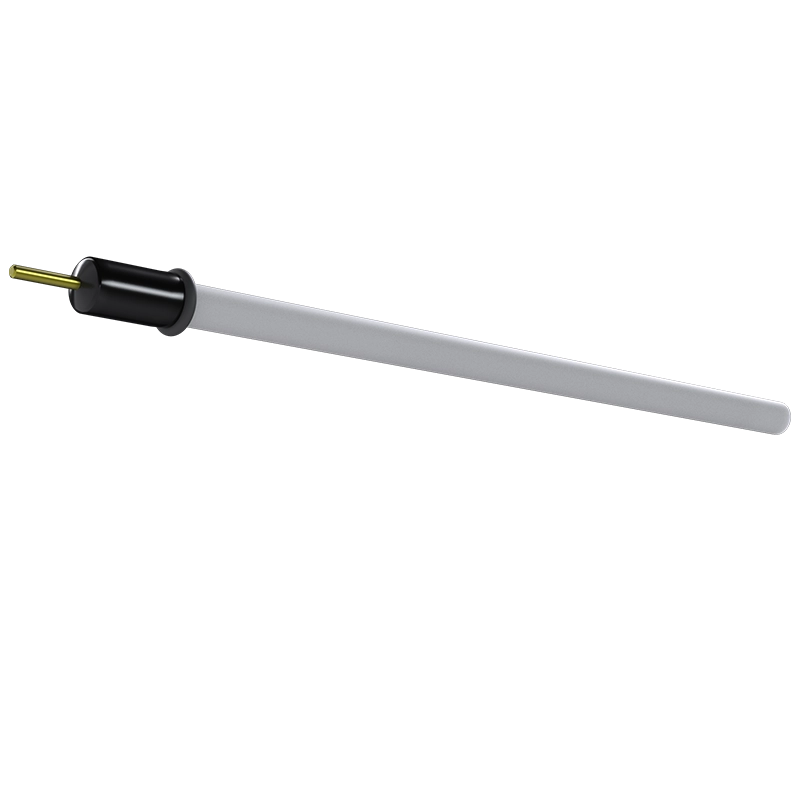

The E1P series stationary working electrode is a simple and cost-effective working electrode with a PTFE shroud. They are ideally designed for use with any of our Low Volume Cell Kits , where the electrode fits through the larger holes in the Low Volume Cell Cap Kit . These electrodes feature an inlaid disk geometry for the working electrode material. This 150 mm long electrode is also ideal for use with our Standard Three-Electrode Cell Kit .

Product Information

Important Product Warnings and Notices

Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.

Product Specifications

The specifications of this product, and any other product that may be included in a kit or bundle, or a part that is included with this product, are listed below.
E1P Series Stationary Working Electrode, Glassy Carbon (GC), 150 mm length, PTFE shroud

Working Electrodes

Disk Electrodes
Disk electrode style
Fixed Disk
Disk material
Glassy Carbon (GC)
Disk crystal lattice
polycrystalline
Disk material purity
100%
Disk finish
Mirror Polish
Disk diameter
3 mm
Disk type
Fixed (embedded in electrode tip)
Disk series compatibility
None (Fixed Disk)
Stationary Electrodes
Working electrode diameter
6.5 ± 0.5 mm (shroud)
Electrode shroud material
PTFE
Working electrode connection style
1.6 mm OD x 8.5 mm L brass pin
Working size type
LowProfile (3.4 - 7.0 mm OD)
Electrode length
150 mm
General
Electrode series
E1P
Thermal stability range
10°C - 25°C
Electrode use/application
Stationary (non-rotating)

Optional Product Add-Ons

Customers may wish to order optional add-on products and accessories compatible with this product. Should you want more details or wish to order an additional item, refer to the list below.

Product Documentation

Historically, much of our support content was written and published as PDF documents. We are primarily writing new support content as part of our Support Center instead; however, product user guides are still published in this format and not all historical application notes and other support documents have been migrated to the Support Center yet.
Document Title
Document Number
Document Type

Safety Data Sheets (SDS)

If this product contains products where an SDS sheet is available, it will be displayed below.

Carbon Materials

Glassy Carbon (GC)
