E1P Series Stationary Working Electrode, Platinum (Pt), 150 mm length, PTFE shroud
Part Number
AFE1PPT150

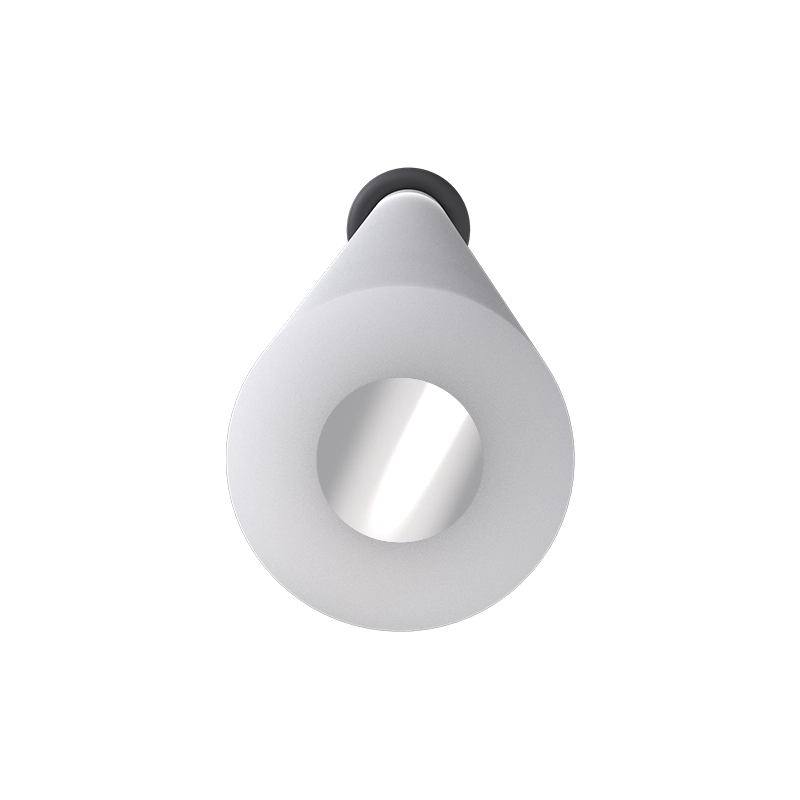

The E1P series stationary working electrode is a simple and cost-effective working electrode with a PTFE shroud. They are ideally designed for use with any of our Low Volume Cell Kits, where the electrode fits through the larger holes in the Low Volume Cell Cap Kit. These electrodes feature an inlaid disk geometry for the working electrode material. This 150 mm long electrode is also ideal for use with our Standard Three-Electrode Cell Kit.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Thermal Stability Range: 10°C - 25°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PTFE or PCTFE shrouds.
E1P Series Stationary Working Electrode, Platinum (Pt), 150 mm length, PTFE shroud
Working Electrodes
Disk Electrodes
Product Disk electrode style
Fixed Disk
Product Disk material
Platinum (Pt)
Product Disk crystal lattice
polycrystalline
Product Disk material purity
99.99%
Product Disk finish
Mirror Polish
Product Disk diameter
3 mm
Product Disk type
Fixed (embedded in electrode tip)
Product Disk series compatibility
None (Fixed Disk)
Stationary Electrodes
Product Working electrode diameter
6.35 mm (shroud)
Product Electrode shroud material
PTFE
Product Working electrode connection style
1.6 mm OD x 8.5 mm L brass pin
Product Working size type
LowProfile (3.4 - 7.0 mm OD)
Product Electrode length
150 mm
General
Product Electrode series
E1P
Product Thermal stability range
10°C - 25°C
Product Electrode use/application
Stationary (non-rotating)
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Elemental Metals
Platinum (Pt)
