Low Volume Alkaline Resistant RDE/RRDE Cell Kit
Part Number
AFCKT1035

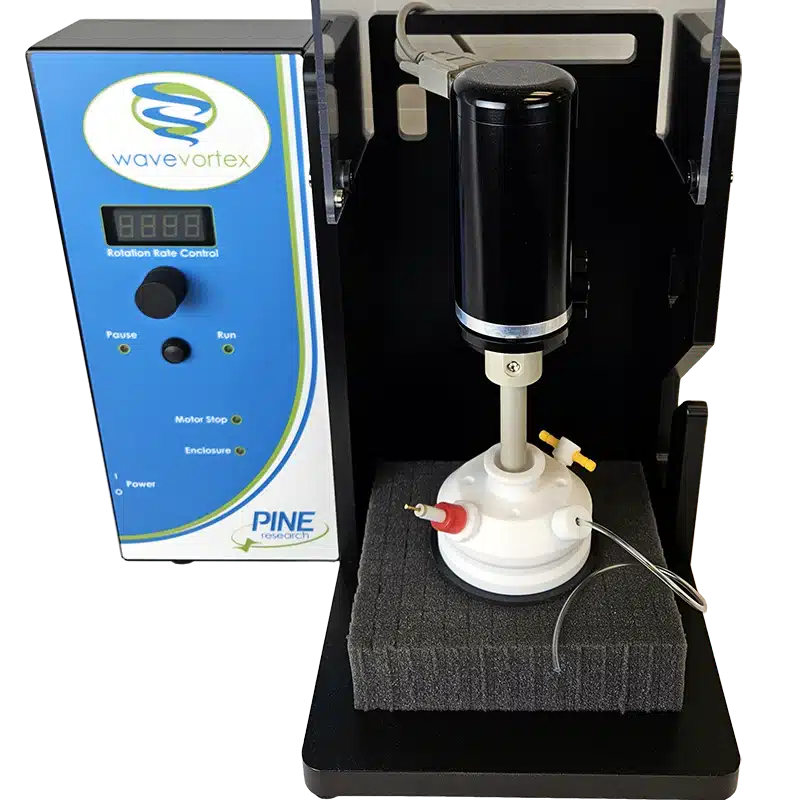

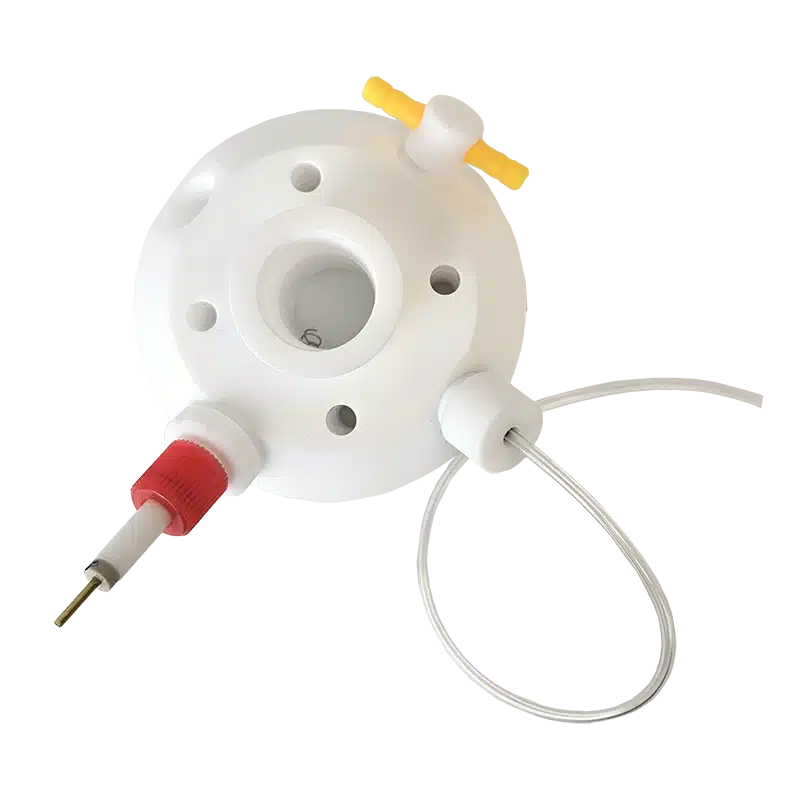

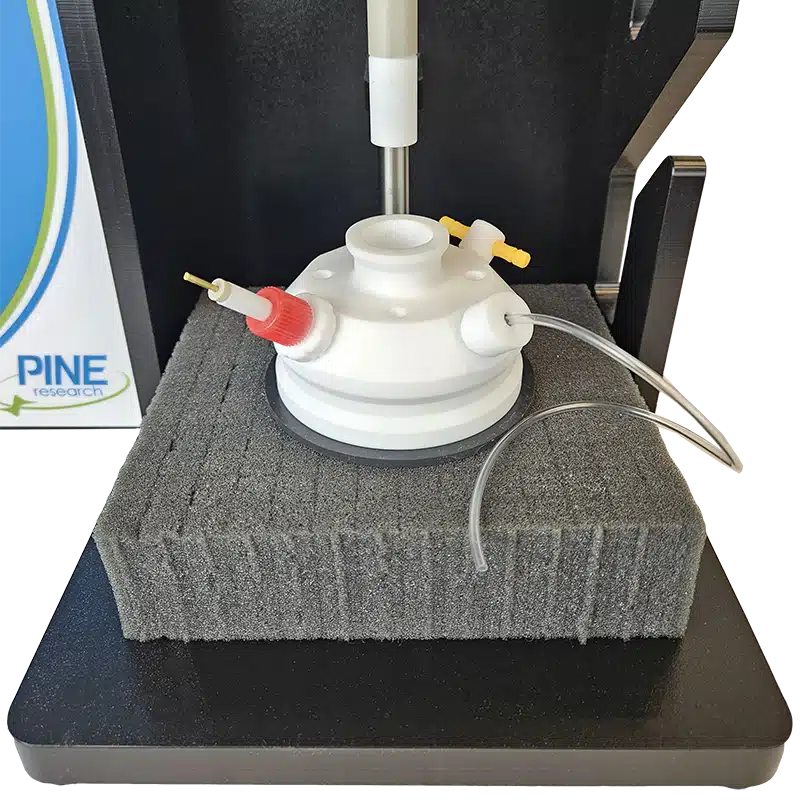

This is a special alkaline-resistant low volume PTFE cell kit that allows RDE/RRDE experiments to be conducted with as low as ~6-10 mL of electrolyte. It is compatible with all Pine Research rotators and RDE/RRDE tips. The 24/25 center port allows the RDE/RRDE tip, and four radially-spaced 14/20 ports allow reference and counter electrodes to be inserted with adapters.
The kit comes with adapters and a LowProfile Pt Counter Electrode, but does not include a reference electrode. If working in strong alkaline electrolyte, the user may have two options. First, a standard size Hg/HgO Reference Electrode will fit in the side 14/20 ports, but is not available in LowProfile size. Alternatively, the user may purchase a LowProfile Ag/AgCl Reference Electrode that is not generally recommended for use with strong alkaline electrolyte, but may be used in limited cases with this cell design. Note that if using this Ag/AgCl reference electrode chemistry, it may be necessary to frequently discard and replace the reference electrode.
Product Kit
This product is sold as a kit, meaning it consists of multiple independent products used together. View the individual kit products in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Categories
Products Included in this Kit
Product kits contain more than one product. Should you want more details or wish to order a replacement component, visit the product page below.
Qty
Product Name / Part #
Price
1

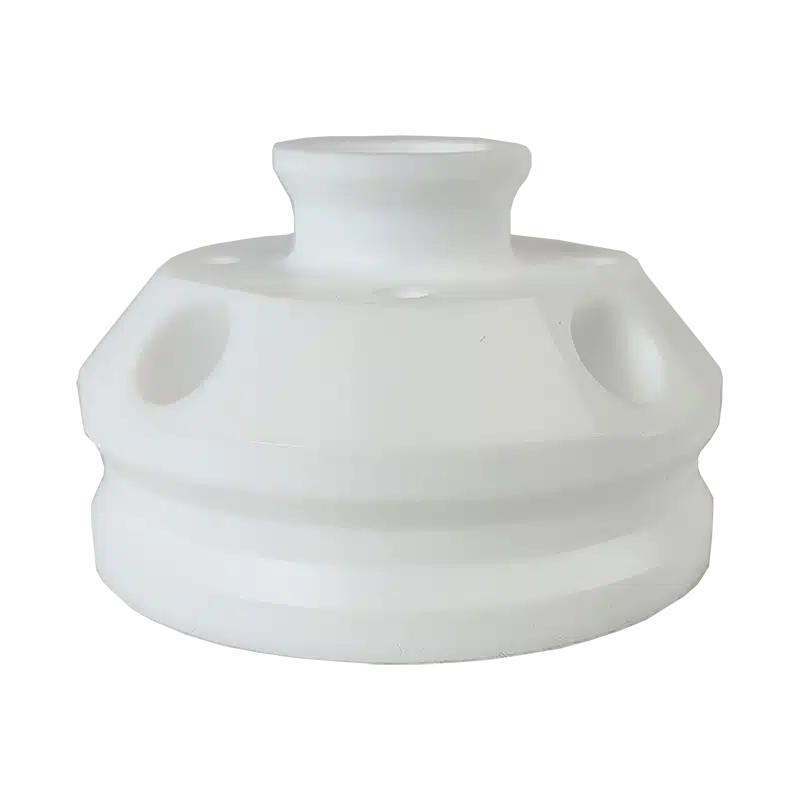

Low Volume Alkaline Resistant RDE/RRDE Cell (Cell Only)
AC01CKT1035M01
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
2
PTFE Adapter, 3.5 mm OD to 14/20 Port
ACEP1420R035
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
PVC Tubing, 1/8 in OD x 1/16 in ID
KAEPVC125063
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Adapter, 7 mm OD to 24/40 Port, PTFE
RRPG036K1
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
2
Adapter, 7 mm OD to 14/20 Port, PTFE
RRPG036K3
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
2
Stopper, PTFE, 14/20 Taper
RRPG085K2
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1

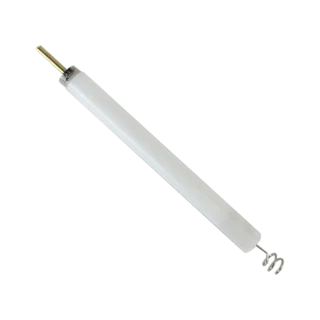

LowProfile Platinum (Pt) Counter Electrode
AFCTR090PT
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Low Volume Alkaline Resistant RDE/RRDE Cell Kit
Electrochemical Cell
Product Cell material
Polytetrafluoroethylene (PTFE)
Product Cell volume (overall, max)
10 mL
Low Volume Alkaline Resistant RDE/RRDE Cell (Cell Only)View Product
Electrochemical Cell
Product Cell material
Polytetrafluoroethylene (PTFE)
Product Cell volume (overall, max)
10 mL
LowProfile Platinum (Pt) Counter ElectrodeView Product
Counter Electrodes
Product Counter electrode size type
LowProfile (6 - 7 mm OD)
Product Counter body diameter
6.6 mm (shroud)
Product Counter length
91 mm
Product Counter electrode material
Platinum Wire
Product Counter electrode connection style
1.8 mm x 9.5 mm long brass pin
Product Counter electrode wire diameter
0.5 mm
Product Counter electrode wire surface area
0.69 cm²
Product Counter electrode platinum mass
0.14 g
Product Counter shroud material
PTFE
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Elemental Metals
Platinum (Pt)
