Separated Cell Kit, Low Volume
Part Number
AF01CKT1008
A general purpose electrochemical cell designed for low volume applications where separation is desired between cell halves. In this design, the user supplies a membrane, polymer, or glass separator which is clamped between each cell half. The overall cell volume is 25 mL per side for a total volume of 50 mL. Each cell half can be used down to approximately 15 mL per side. The low volume glass cell is designed to accommodate our LowProfile working, counter, and reference electrodes. The cell kit(s) consists of the cell, the Low Volume Cell Cap Kit, and two gas purge/sparge tubes.
Product Kit
This product is sold as a kit, meaning it consists of multiple independent products used together. View the individual kit products in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
The Low Volume Cell Series is designed for use with:
- Our Low Volume Cap Kit, which can be used in two configurations - open or closed to the atmosphere. The cap kit sealsaround all electrodes and probes in the cell.
- The Pine Researchminiature aqueous and non-aqueous reference electrodes. These electrodes are a perfect fit for the 3.5 mm OD hole in the Low Volume cell cap.
- Platinum, gold, or glassy carbon LowProfile working electrodes. These electrodes fit the larger bore holes in the Low Volume Cap Kit.
- OurLowProfile platinum counter electrode has a7 mm OD for the larger bore holes in the Low Volume Cap Kit.
Separated Cell Kit, Low Volume is sold as a product kit. Product kits contain more than one product when purchased. Should you want more details on a specific part in the kit or wish to order an additional or replacement of a component, you can visit the product page for any item in the kit below.
Qty
Product Name
Part #
View Product
Separated Cell Kit, Low Volume is sold as a product kit. The data below aggregates the specifications for each product contained within the kit.

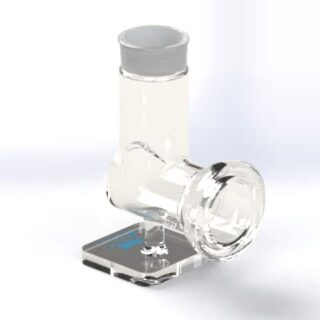

Separated Cell Low Volume Kit Component: Half Cell (One Half Cell Only)
Electrochemical Cell
24/12 ports
Cell material
Cell volume (overall, max)
25 mL
Cell water jacket
Cell diameter
2.8 cm
Cell height
6.9 cm (with base)
Cell application
Stationary
Cell series
Cell compatibility
Low volume cell series
Cell features
Low Volume Cell Series Cap Kit
Product Kits
Product kit
Cell kit type
Kit includes
Cell cap, Cell cap kit, O-rings, Plugs, Screws
O-Ring, Viton, Round, Size #217
O-Ring Dimensions
O-ring dash number
217
O-ring material
O-ring cross section shape
Round
O-ring outer diamter (OD)
1 7/16 in
O-ring inner diamter (ID)
1 3/16 in
O-ring width (W)
1/8 in
