RDE System Bundle: MSR evo, E5TQ Series RDE
Part Number
[MSR-RDE-E5TQ]
Purchase this product bundle with confidence. The team at Pine Research ensures all components are compatible and designed to work together. This bundle includes:
- The MSR evo Electrode Rotator
- An E5TQ Series RDE tip with glassy carbon disk insert
- Additional essential components (see Bundle Products tab below).
This bundle is perfect for a new lab startup, adding a new methodology to your research program or industrial applications, and/or increasing electrochemical exerpiment capacity in your lab.
Product Bundle
This is a product bundle, meaning several compatible products are included together. View the individual bundle products in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Chemical Compatibility Caution Notice
PEEK dissolves with long exposure to concentrated acids.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.
Compatibility Notice
Avoid using this reference electrode with the following: NH3 buffers, sulfides, perchlorates, non-aqueous/organic solvents, and alkaline solutions stronger than 0.1M OH–.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Specify Power Cord
This product requires a power cord to connect to AC mains. Please specify the plug style used in your region when you order this product. We stock a variety of power cords.
Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Fragile Material Warning
Platinum wire is fragile. While it can be formed into a shape, repeated bending will cause the wire to break. In almost all cases, this is irreversible and cannot be repaired. Do not bend platinum wire.
MSR evo Electrode Rotator
The MSR evo Electrode Rotator is an evoLUTION of the world's most popular rotator, the Modulated Speed Rotator (MSR). This flexible electrochemical instrument may be used with Rotating Disk Electrodes (RDE), Rotating Ring-Disk Electrodes (RRDE), and Rotating Cylinder Electrodes (RCE). The MSR evo Rotator is compatible with most international power configuration standards. The MSR evo Rotator shares many of the same technical specifications as the MSR, with a few exciting updates:
- Rotation range increase: 0 to 11,000 RPM
- Improved and revised control unit electronics, for improved stability.
- Updated control unit is smaller, modern, and better laid out.
- Added Pause/Run button to front panel (as found on the WaveVortex 10 Electrode Rotator).
- Bright LED display on front panel replaced old LCD.
- Continues to use the same RDE, RRDE, and RCE electrodes as the original MSR.
- New USB port on control unit allows for future integrations and features.
The rotation rate of the electrode may be adjusted using a control knob on the front panel of the motor control unit, or alternately, the rotation rate can be controlled via an output signal from an electrochemical workstation or third-party waveform generator. The rotation rate shines brightly on the new blue LED display on the control unit. The rotation rate is adjustable over a range from 50 to 10,800 RPM and is accurate to within 1% of the reading on the display. Rotation rate may also be monitored via an output signal proportional to the rotation rate, accesible on the control unit input/output connector.
The rotation rate may be controlled and modulated by a sine wave, square wave, or other externally generated waveform. The outstanding acceleration characteristics of the motor and its control circuitry allow the rotation rate to follow the control waveform with very little error. This feature is particularly desirable for techniques such as Hydrodynamic Modulation Voltammetry (HMV).
The rotator motor position is easily raised or lowered with respect to the cell platform, making immersion or removal of the rotating electrode tip quick and easy. The enclosure base is made from chemically resistant polypropylene, and the large enclosure window provides a good view of rotating electrode during operation.

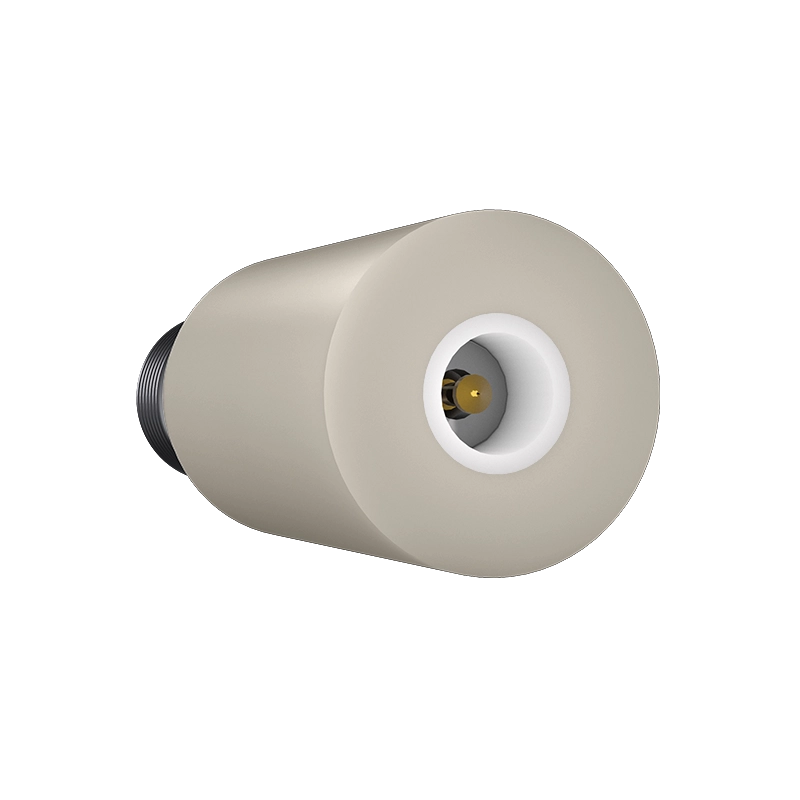

E5TQ Series ChangeDisk Rotating Disk Electrode (RDE) tip
The E5TQ Series ChangeDisk Rotating Disk Electrode (RDE) tip is one of the most common RDE electrodes we offer. This tip features a 15 mm OD PEEK shroud and a removable hardware assembly, which permits the installation and removal of 5 mm OD disk inserts (Glassy Carbon disk insert included in this bundle). The tip threads into the Precision RDE/RRDE Shaft for E5, E5TQ, E6, E7, and E8 Series Tips, which is then installed into the MSR evo Electrode Rotator. Pine Research offers more electrode in more materials than anybody else. Check out all the other MSR evo compatible RDE tips we offer.
Products Included in this Bundle
Product bundles combine multiple products into one purchase. For details or to purchase additional items, visit the product page for any item below.
Qty
Product Name / Part #
Price
1
MSR evo Electrode Rotator
AFMSR24B1
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Precision RDE/RRDE Shaft for E5, E5TQ, E6, E7, and E8 Series Tips
AFE6MB
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
E5TQ Series ChangeDisk Rotating Disk Electrode, PEEK
AFE5TQ050PK
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
RDE/RRDE Disk Insert, 5 mm OD x 4 mm thick, Glassy Carbon (GC)
AFED050P040GC
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
E5/E6 Series ChangeDisk Electrode Toolkit
AFE6K050
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Reference Electrode, Silver/Silver Chloride, Single Junction
RREF0021
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Rotating Disk/Ring-Disk Cell Kit, Standard Volume, Water Jacket
AKCELL3
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Bearing Assembly, Gas-Purged, for AFE6MB/AFE9MBA Shaft, PEEK, with 24/25 Taper
AC01TPA6M
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Electrode Polishing Kit
AKPOLISH
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Counter Electrode Assembly, Platinum (Pt), 14/20
AFCTR5
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
RDE System Bundle: MSR evo, E5TQ Series RDE
Product Bundles
Product Product bundle
Yes
Product Bundle includes
Counter electrode, Electrochemical cell, Electrode rotator, Reference electrode, Rotating disk working electrode, Rotating Shaft
Product Bundle application
General electrochemistry, Rotating Disk (RDE)
Product Bundled electrode rotator
MSR evo
MSR evo Electrode RotatorView Product
Electrode Rotator
Safety & Environmental
Product Rotator RoHS compliant
Yes
Physical
Product Control unit dimensions
27 × 25 × 11 cm (10.8 × 9.8 × 4.3 in)
Product Enclosure dimensions
48 × 40 × 54 cm (18.8 × 15.5 × 21 in)
Product Enclosure base and sides materials
White polypropylene (PP)
Product Enclosure window material
Clear polycarbonate (PC)
Product Center post/support rod material
303 stainless steel
Product Operating temperature
10 °C - 40 °C (50 °F - 104 °F)
Product Rotator shipping weight
27 kg (60 lb)
Rotation Rate
Product Rate limits
0 to 11,000 RPM
Product Rate accuracy
0 to 4,000 RPM: accurate to within ±2 RPM; 4,000 RPM and above: accurate to within ±1 count and ±0.1% of display reading
Product External rate control
Optional rate control via input signal on external I/O port; available control ratios: 1, 2, or 4 RPM/mV, jumper selectable
Product Rate display
4 ½ digit display indicates rotation rate (RPM)
Product Rate output
Voltage output accessible from back panel 8-pin connector
Product Start/stop (front panel)
Push-button toggle on front panel with LED indicators for “pause” and “run”
Product Start/stop (external)
Available TTL logic: active high or active low; jumper selectable, Front panel LED indicates when external motor stop is active, Optional digital motor stop input signal on external I/O port
Grounding
Product Rotator chassis terminal
Chassis connection on back panel 8-pin connector
Product Rotator earth ground
No direct connection available
Electrical
Product Electrode connections
Disk electrode: two red banana jacks on motor unit, Ring electrode: two blue banana jacks on motor unit
Product Rotator AC power input
100 - 240 VAC, ±10%, 50/60 Hz, 2 A
Product Power switch location
Front of control unit
Product Back panel controls
8-pin I/O connector, Circuit breaker reset button
Product Front panel controls
External/manual control switch, Power switch, Run/pause button
Product Rotator I/O Connections
Chassis ground, External stop signal, External voltage input (external rate control), TTL logic (active high or active low), Voltage output
Motor
Product Control method
Closed loop servo-system; temperature compensated tachometer mounted on motor shaft
Product Maximum continuous torque
30.4 mN·m
Product Motor power
20 W
Product Motor protection
2 Amp thermal-type circuit breaker current limited power supplies
Product Motor type
Permanent Magnet
Product Modulation boundaries
Modulation boundaries plot
Precision RDE/RRDE Shaft for E5, E5TQ, E6, E7, and E8 Series TipsView Product
Electrode Shafts
Product Shaft length (overall)
171 mm (6.7 in)
Product Shaft shroud diameter
15 mm
Product Shaft shroud length
101 mm, 83 mm
Product Shaft shroud material
PEEK
Product Shaft compatible electrode tip series
E5 (RDE tip), E5TQ (RDE tip), E6 (RRDE tip), E7 (RRDE tip), E8 (RRDE tip)
Electrode Rotator
Applications
Product Rotating application
Rotating Disk (RDE), Rotating Ring-Disk (RRDE)
E5TQ Series ChangeDisk Rotating Disk Electrode, PEEKView Product
Working Electrodes
Disk Electrodes
Product Disk electrode style
ChangeDisk
Product Disk diameter
5 mm
Product Disk type
Insert (no electrode body)
Product Disk series compatibility
AFED050 (5 mm OD)
Electrode Tips
Product Tip maximum rotation rate
3000 RPM
Product Tip shroud material
PEEK
Product Tip shroud diameter
15 mm
Product Tip shroud length
25.4 mm
Product Tip length (overall)
49 mm
Rotating Electrodes
Product Maximum rotation rate
3000 RPM
Product Shaft compatibility
Non-Rotating RDE Shaft (AFE5F), RDE Shaft for ASR Rotator (AFE5A), RDE/RRDE Precision Shaft for MSR Rotator (AFE6MB), RDE/RRDE Shaft for MSR Rotator (AFE6M), RDE/RRDE Shaft for WaveVortex 10 Rotator
Product Rotating electrode type
ChangeDisk Tip
Product Compatible electrode rotator(s)
ASR Rotator (AFASR), MSR evo Rotator (AFMSR24), MSR Rotator (AFMSRCE), MSRX Rotator (AFMSRX), WaveVortex 10 Rotator (AF01WV10)
General
Product Electrode series
E5TQ
Product Thermal stability range
10°C - 80°C
Product Electrode use/application
Rotating Disk (RDE)
RDE/RRDE Disk Insert, 5 mm OD x 4 mm thick, Glassy Carbon (GC)View Product
Electrode Shafts
Product Shaft compatible electrode tip series
DTI60 (RRDE tip), E4TQ (RDE tip), E5TQ (RDE tip), E6 (RRDE tip), MTI36 (RRDE tip)
Working Electrodes
Disk Electrodes
Product Disk material
Glassy Carbon (GC)
Product Disk finish
Mirror Polish
Product Disk diameter
5 mm
Product Disk thickness
4 mm
Product Disk type
Insert (no electrode body)
Rotating Electrodes
Product Rotating electrode type
Disk Insert
Reference Electrode, Silver/Silver Chloride, Single JunctionView Product
Reference Electrodes
Product Reference chemistry
Ag/AgCl
Product Standard potential
+199 mV vs NHE
Product Reference size type
Standard (9.5 mm OD)
Product Reference electrode body diameter
9.5 mm
Product Reference electrode length
19 cm
Product Reference frit material
Ceramic
Product External fill solution
4 M KCl with AgCl
Product Refillable
yes
Product Typical variance
±3 - 5 mV
Product Typical input impedance
< 10 kΩ
Product Reference electrode connection style
1.6 mm OD x 8.5 mm long brass pin
Product Reference electrode body material
borosilicate glass
Counter Electrode Assembly, Platinum (Pt), 14/20View Product
Counter Electrodes
Product Counter electrode size type
Standard (9.5 mm - 12 mm OD)
Product Counter body diameter
6.4 mm (shroud)
Product Counter length
180 mm
Product Counter electrode material
Platinum Wire
Product Counter electrode connection style
1.5 mm OD x 7 mm long gold-plated pin
Product Counter electrode wire diameter
0.5 mm
Product Counter electrode wire surface area
4.7 cm²
Product Counter electrode platinum mass
1.3 g
Product Counter electrode adapter
12 mm to 14/20 Joint, 6.4 mm to 14/20 Joint
Product Counter electrode isolation tube frit
Ace Glass Frit D (10 – 20 µm)
Product Counter electrode isolation tube diameter
12 mm
Product Counter shroud material
Epoxy
Product Documentation
DRA10052
Probing Fuel Cell Electrocatalyst Properties Using Pine Rotating Disk and Ring-Disk Electrodes
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Carbon Materials
Glassy Carbon (GC)
Electrode Polishing Materials
Reference Electrode Filling Solutions
4 M Potassium Chloride with Silver Chloride (KCl with AgCl)
