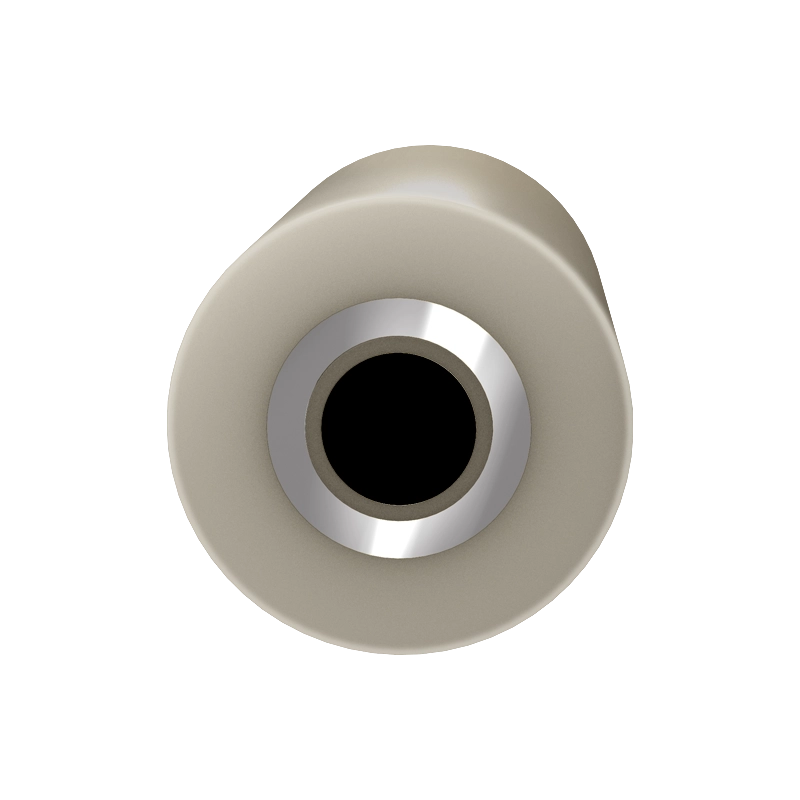

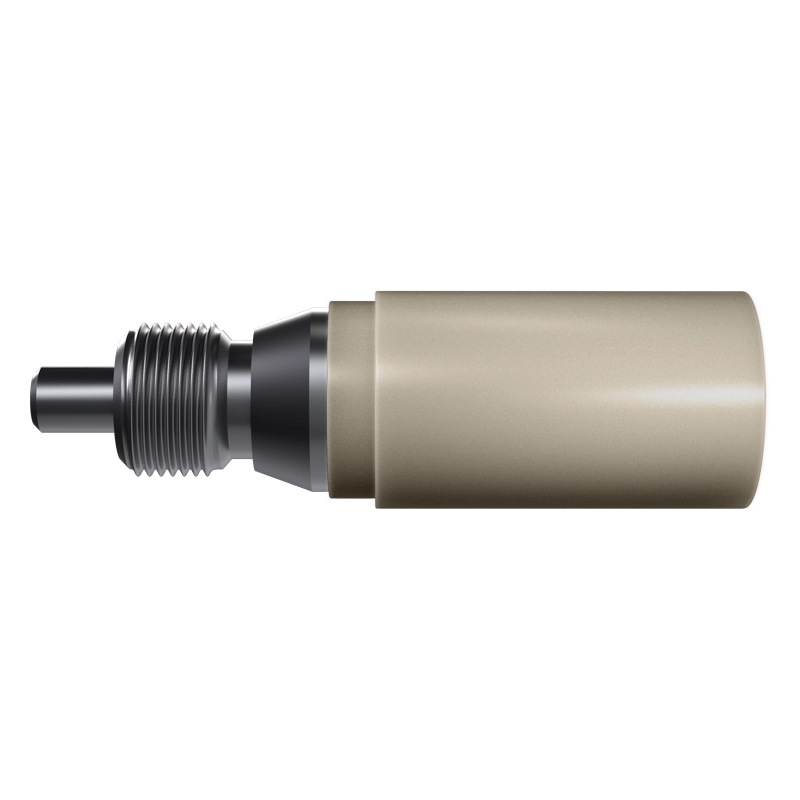

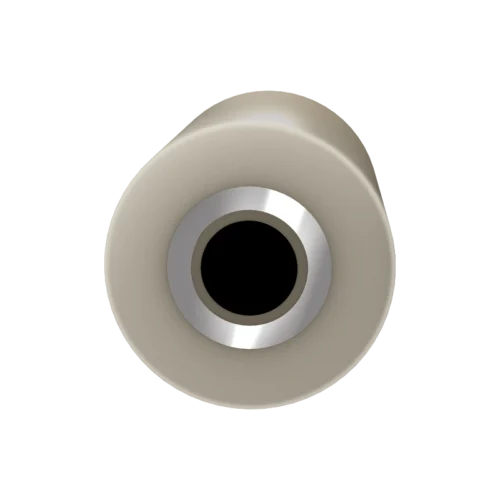

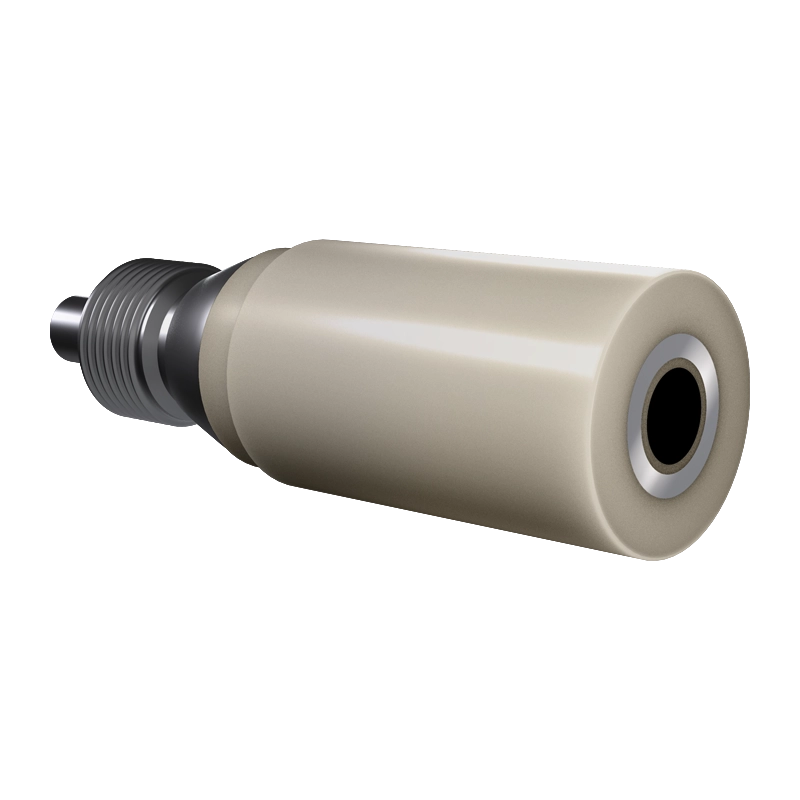

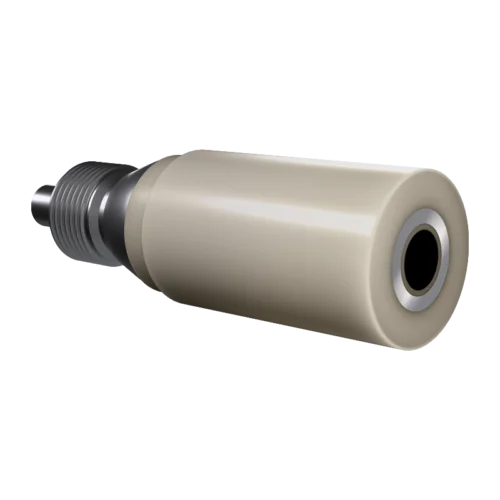

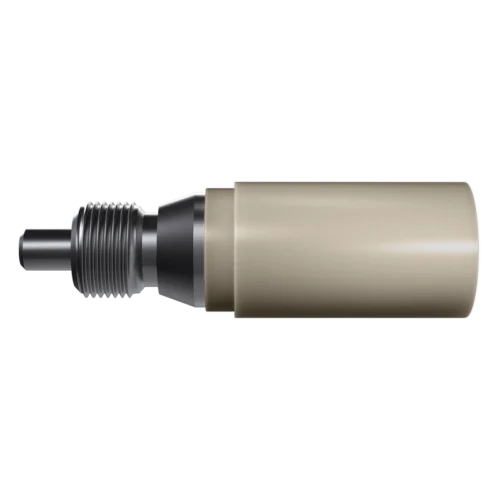

E8 Series Fixed-Disk High Efficiency Rotating Ring-Disk Electrode, Glassy Carbon (GC) Disk, Platinum (Pt) Ring, PTFE separator, PEEK shroud
Part Number
AFE8R4GCPT
The E8R4 Series Fixed-Disk Rotating Ring-Disk Electrode (RRDE) tip is often used for electrocatalyst-based research such as oxygen reduction reaction (ORR) experiments. This high quality, precision RRDE tip is Fixed-Disk style, which means the disk electrode is fixed in position and cannot be removed or changed. The ring electrode is also permanently-fixed into position and cannot be removed. The RRDE tip features a PTFE ring-disk separator, which can help provide hydrophobicity for drop-casting procedures. There is also a PEEK shroud, which allows for greater thermal stability. This tip threads into compatible shafts and is not designed to be used by itself. Many other configurations of RRDE tips are available.
Related Product Bundles
This product is available in related bundles. View related bundles in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Maximum Rotation Rate: 3000 RPM
Never exceed maximum rotation rate when working with rotating electrodes.
Maximum Rotation Rate
All rotating electrodes, including RDE, RRDE, and RCE, have an assigned maximum rotation rate. The maximum rotation rate is specific to each electrode series. Do not exceed the maximum rotation rate when working with rotating electrodes.
Shafts sold separately.
Given the wide range of electrodes we offer, where each series requires one of several rotating shafts, shafts must be purchased separately for the MSR and MSR evo rotators. Consult the RDE, RRDE, and/or RCE specifications to learn which shaft is compatible.
Compatibility Notice
This product is only compatible with the MSRX (AFMSRX), MSR (AFMSRCE), MSR evo (AFMSR24), and WaveVortex 10 (AF01WV10) electrode rotators.
Thermal Stability Range: 10°C - 80°C
Electrode damage may occur at temperatures beyond recommended range. This range is provided for electrodes with PEEK shrouds.
Available in these Bundles
This product is available as part of a product bundle (a combination of products that are compatible and often sold together for convenience).
MSR evo
Bundle Name / Part #
Price
RRDE System Bundle: MSR evo, E8R4 Series RRDE
[MSR-RRDE-E8R4]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
WaveVortex 10
Bundle Name / Part #
Price
RRDE System Bundle: WaveVortex 10, E8R4 Series RRDE
[WV10-RRDE-E8R4]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
MSR evo and WaveDriver 200
Bundle Name / Part #
Price
Complete RRDE System Bundle: WaveDriver 200, MSR evo, E8R4 Series RRDE
[WD200-MSR-RRDE-E8R4]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
WaveVortex 10 and WaveDriver 40
Bundle Name / Part #
Price
Complete RRDE System Bundle: WaveDriver 200, WaveVortex 10, E8R4 Series RRDE
[WD200-WV10-RRDE-E8R4]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Ungrouped
Bundle Name / Part #
Price
Complete RRDE System Bundle: WaveDriver 40, MSR evo, E8R4 Series RRDE
[WD40-MSR-RRDE-E8R4]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RRDE System Bundle: WaveDriver 40, WaveVortex 10, E8R4 Series RRDE
[WD40-WV10-RRDE-E8R4]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
E8 Series Fixed-Disk High Efficiency Rotating Ring-Disk Electrode, Glassy Carbon (GC) Disk, Platinum (Pt) Ring, PTFE separator, PEEK shroud
Working Electrodes
Ring Electrodes
Product Ring material
Platinum (Pt)
Product Ring crystal lattice
Polycrystalline
Product Ring material purity
99.99%
Product Ring finish
Mirror Polish
Product Ring outer diameter
8.5 mm
Product Ring inner diameter
6 mm
Product Ring thickness
1.25 mm
Product Ring disk gap
0.5 mm
Product Ring disk separator material
PTFE
Product Collection efficiency
43.9%
Disk Electrodes
Product Disk electrode style
Fixed Disk
Product Disk material
Glassy Carbon (GC)
Product Disk crystal lattice
polycrystalline
Product Disk material purity
100%
Product Disk finish
Mirror Polish
Product Disk diameter
5 mm
Product Disk type
Fixed (embedded in electrode tip)
Product Disk series compatibility
None (Fixed Disk)
Electrode Tips
Product Tip maximum rotation rate
3000 RPM
Product Tip shroud material
PEEK
Product Tip shroud diameter
15 mm
Product Tip shroud length
25.4 mm
Product Tip length (overall)
49 mm
Rotating Electrodes
Product Maximum rotation rate
3000 RPM
Product Shaft compatibility
RDE/RRDE Precision Shaft for MSR Rotator (AFE6MB), RDE/RRDE Shaft for MSR Rotator (AFE6M), RDE/RRDE Shaft for WaveVortex 10 Rotator
Product Rotating electrode type
Fixed Disk Tip
Product Compatible electrode rotator(s)
ASR Rotator (AFASR), MSR evo Rotator (AFMSR24), MSR Rotator (AFMSRCE), MSRX Rotator (AFMSRX), WaveVortex 10 Rotator (AF01WV10)
General
Product Electrode series
E8
Product Thermal stability range
10°C - 80°C
Product Electrode use/application
Rotating Ring-Disk (RRDE)
