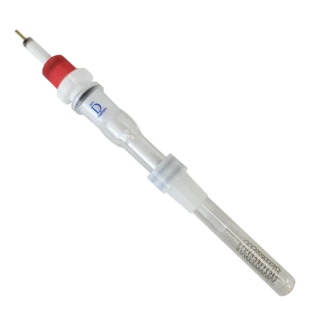

Platinum (Pt) Coil Counter Electrode
Part Number
AFCTR187PT
This new platinum counter electrode features a 6.6 mm OD PTFE body and terminates with a coil of 0.5 mm OD platinum (Pt) wire featuring an approximate surface area of 4.7 cm². This counter electrode is ideally designed for use with our Standard volume electrochemical cells, but is not limited to use in these cells. Customers who have no desire for the fritted isolation tube may consider using this product by itself. This counter electrode is also available as part of the Platinum counter electrode assembly.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Fragile Material Warning
Platinum wire is fragile. While it can be formed into a shape, repeated bending will cause the wire to break. In almost all cases, this is irreversible and cannot be repaired. Do not bend platinum wire.
Counter Electrodes
Counter electrode size type
Counter body diameter
6.6 mm (shroud)
Counter length
191 mm
Counter electrode material
Counter electrode connection style
1.8 mm x 9.5 mm long brass pin
Counter electrode wire diameter
0.5 mm
Counter electrode wire surface area
4.7 cm²
Counter electrode platinum mass
1.3 g
Counter electrode adapter
6.4 mm to 14/20 Joint
Counter shroud material
PTFE
