Three Electrode Cell Kit, Standard Volume, Gold (Au) Working Electrode
Part Number
[WEB92-AU]
The following cell kits provide you with everything you need to set up a traditional three-electrode voltammetry experiment using a goldworking electrode. The glass cell (100 mL) comes equipped with a silver/silver chloride reference electrode, platinum counter electrode, and a set of PTFEstoppers. A single gold disk working electrode is included with each kit. Materials for polishing the working electrode are also included.
Product Kit
This product is sold as a kit, meaning it consists of multiple independent products used together. View the individual kit products in the tab below.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Products Included in this Kit
Product kits contain more than one product. Should you want more details or wish to order a replacement component, visit the product page below.
Qty
Product Name / Part #
Price
1
Three Electrode Cell Kit, Standard Volume
AKCELL1
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1

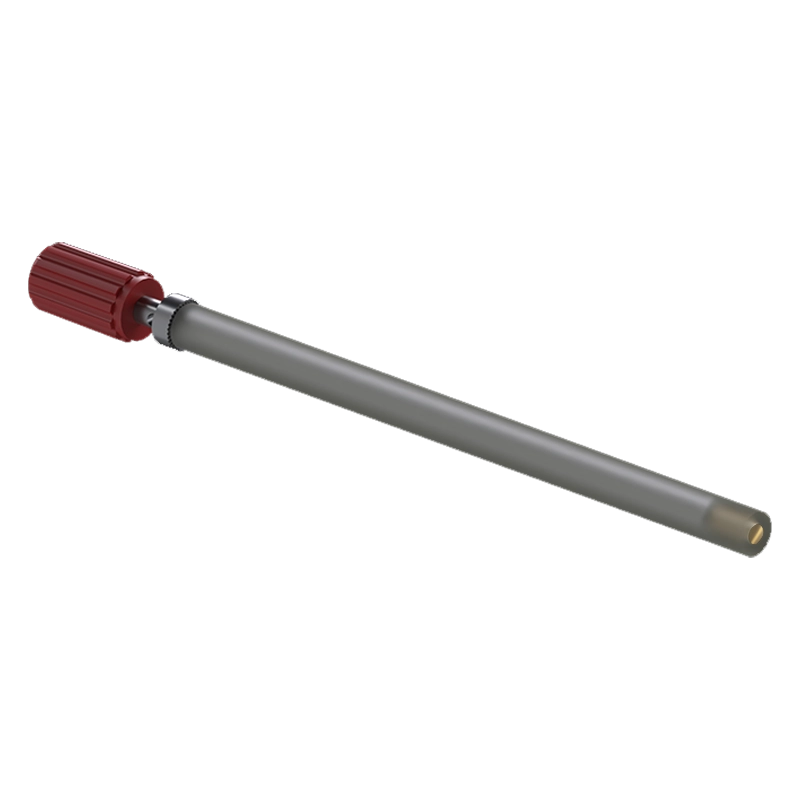

E1X Series Stationary Working Electrode, Gold (Au), PCTFE shroud
AFE1XFG030AUR
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Reference Electrode, Silver/Silver Chloride, Single Junction
RREF0021
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Electrode Polishing Kit
AKPOLISH
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Adapter, 7 mm OD to 14/20 Port, PTFE
RRPG036K3
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Counter Electrode Assembly, Platinum (Pt), 14/20
AFCTR5
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Three Electrode Cell Kit, Standard Volume, Gold (Au) Working Electrode
Product Kits
Product Product kit
Yes
Product Cell kit type
Complete (cell, accessories, electrodes)
Product Kit includes
Cell stoppers, Cell vent accessory, Counter electrode, Electrochemical cell, Electrode polishing kit, Gas sparge/purge tube(s), Reference electrode, Working electrode
E1X Series Stationary Working Electrode, Gold (Au), PCTFE shroudView Product
Working Electrodes
Disk Electrodes
Product Disk electrode style
Fixed Disk
Product Disk material
Gold (Au)
Product Disk crystal lattice
polycrystalline
Product Disk material purity
99.99%
Product Disk finish
Mirror Polish
Product Disk diameter
3 mm
Product Disk type
Fixed (embedded in electrode tip)
Product Disk series compatibility
None (Fixed Disk)
Stationary Electrodes
Product Working electrode diameter
7 mm (shroud)
Product Electrode shroud material
PCTFE
Product Working electrode connection style
4 mm Banana Receptacle
Product Working size type
LowProfile (3.4 - 7.0 mm OD)
Product Electrode length
137 mm
General
Product Electrode series
E1X
Product Thermal stability range
10°C - 25°C
Product Electrode use/application
Stationary (non-rotating)
Reference Electrode, Silver/Silver Chloride, Single JunctionView Product
Reference Electrodes
Product Reference chemistry
Ag/AgCl
Product Standard potential
+199 mV vs NHE
Product Reference size type
Standard (9.5 mm OD)
Product Reference electrode body diameter
9.5 mm
Product Reference electrode length
19 cm
Product Reference frit material
Ceramic
Product External fill solution
4 M KCl with AgCl
Product Refillable
yes
Product Typical variance
±3 - 5 mV
Product Typical input impedance
< 10 kΩ
Product Reference electrode connection style
1.6 mm OD x 8.5 mm long brass pin
Product Reference electrode body material
borosilicate glass
Counter Electrode Assembly, Platinum (Pt), 14/20View Product
Counter Electrodes
Product Counter electrode size type
Standard (9.5 mm - 12 mm OD)
Product Counter body diameter
6.4 mm (shroud)
Product Counter length
180 mm
Product Counter electrode material
Platinum Wire
Product Counter electrode connection style
1.5 mm OD x 7 mm long gold-plated pin
Product Counter electrode wire diameter
0.5 mm
Product Counter electrode wire surface area
4.7 cm²
Product Counter electrode platinum mass
1.3 g
Product Counter electrode adapter
12 mm to 14/20 Joint, 6.4 mm to 14/20 Joint
Product Counter electrode isolation tube frit
Ace Glass Frit D (10 – 20 µm)
Product Counter electrode isolation tube diameter
12 mm
Product Counter shroud material
Epoxy
Safety Data Sheets (SDS)
For this product, any applicable SDS will be listed here by category. You can view or download the SDS by clicking the appropriate button.
Electrode Polishing Materials
Reference Electrode Filling Solutions
4 M Potassium Chloride with Silver Chloride (KCl with AgCl)
