WaveDriver 100 Electrochemical Workstation
The WaveDriver 100 Electrochemical Workstation is engineered to provide the essential hardware and software features you need at an affordable price. It supports a wide range of DC electroanalytical techniques as well as AC techniques such as Electrochemical Impedance Spectroscopy (EIS). It offers current ranges up to ±1 A, potential ranges up to ±15 V, advanced inputs/outputs, waveform filters, EIS up to 1 MHz, and iR compensation. The WaveDriver 100 is a high performance, single-channel, EIS-capable workstation ideal for use with stationary electrodes, RDE, and RCE experiments.
AfterMath Blue – Data Acquisition, Analysis, and Organization Software
Licenses for our AfterMath® Blue software are included with the purchase of an Electrochemical Workstation. The licenses give you access to all of the AC and DC methods that the WaveDriver 100 can perform. Pine Research does not charge extra for various categories of electrochemical techniques. If the instrument is capable of a method, you have access to it (no hidden costs). Here are some unique features of AfterMath Blue:
- Instrument Control. When started, AfterMath automatically detects all compatible instrumentation attached to the computer and provides complete control over each instrument. It can simultaneously control multiple instruments and queue multiple experiments.
- Flexible Plotting. AfterMath offers a powerful “drag-n-drop” feature for quickly copying and moving traces between plots, with precise control over various plot settings.
- Scientific Units. Designed with scientific data in mind, AfterMath properly handles units, metric prefixes, and significant figures.
- Data Archiving. A unique XML-based file format allows multiple related experiments to be stored in a single archive file, simplifying file management.
- Tools and Transforms. Flexible tools allow precise measurement of quantities like peak height and area, with fundamental mathematical operations available on any trace.
Our talented team of engineers and chemists have taken a careful approach at integrating EIS into our Electrochemical Workstations. Our software engineering team has incorporated EIS equivalent circuit fitting and simulation directly into our AfterMath Blue software (no separate software required). Multiple curve fitting algorithms and options allow you to fit even the most troublesome data. Here are some of the exciting and novel EIS analysis features in AfterMath Blue:
- Integrated Curve Fitting and Analysis. Our software team has seamlessly integrated EIS curve fitting into AfterMath. Why work with more than one software application to fit your EIS data when you can do it using the very same software application that acquired the data? AfterMath EIS curve fitting utilities provide several analyses, including Circuit Fit, Circuit Simulation, Transmission Line, and Kramers-Kronig. Unlike others, our fitting software also provides several fitting methods including Modified Levenberg-Marquardt (LM), Simplex, and Powell algorithms in addition to fitting options that include dynamic point selection, unity, and parametric weighting.
- Novel Transmission Line Fitting. AfterMath provides a unique approach to model your porous electrodes. While the transmission line model is not new, AfterMath provides you with some unique transmission line fitting tools. Instead of a static circuit, where you have no control over the elements of the model, we provide a very flexible basic model, from which you can customize nearly all aspects of the model to suit your system. Give it a try – import your three- or five-column EIS data directly into AfterMath and see the difference with our transmission line fitting.
- Finishing Touches. While fitting your EIS data, why flip back and forth between Nyquist and Bode plots? Why not be able to view both plots and fits simultaneously? We heard this feedback from many customers and have designed AfterMath to provide you with both plots simultaneously during fitting. You can also draw your own equivalent circuits to fit your particular system.
Products Included in this Bundle
Product bundles combine multiple products into one purchase. For details or to purchase additional items, visit the product page for any item below.
Qty
Product Name / Part #
Price
1
Universal Dummy Cell, Modular
AFDUM9
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Available in these Bundles
This product is available as part of a product bundle (a combination of products that are compatible and often sold together for convenience).
MSR evo and RDE Electrode
Bundle Name / Part #
Price
Complete RDE System Bundle: WaveDriver 100, MSR evo, E5TQ Series RDE
[WD100-MSR-RDE-E5TQ]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 100, MSR evo, E5 Series RDE
[WD100-MSR-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
WaveVortex 10 and RDE Electrode
Bundle Name / Part #
Price
Complete RDE System Bundle: WaveDriver 100, WaveVortex 10, E5TQ Series RDE
[WD100-WV10-RDE-E5TQ]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Complete RDE System Bundle: WaveDriver 100, WaveVortex 10, E5 Series RDE
[WD100-WV10-RDE-E5]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Honeycomb Cell and UV/Vis
Bundle Name / Part #
Price
WaveDriver 100 Spectroelectrochemistry System Bundle
[WD100-SPEC]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
MSR evo and RCE Electrode
Bundle Name / Part #
Price
Complete RCE System Bundle: WaveDriver 100, MSR evo, 15 mm RCE
[WD100-MSR-RCE15]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
Basic System Bundle
Bundle Name / Part #
Price
WaveDriver 100 EIS Potentiostat Basic Bundle
[WD100-BASIC]
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
WaveDriver 100 Electrochemical Workstation
Electrochemical Workstations
Communication
Product Interface
USB
Product Wireless capable
No
General
Product Power input
24 VDC (±5%), 5.0 A (low voltage DC device)
Product Power supply input
100 - 240 VAC, 1.4 - 0.7 A, 50 - 60 Hz
Product Power supply output
24 VDC, 5.0 A power supply (included) has a C14 type input connector
Product Power cord
Various international cables sold separately (C13 type)
Product LED indicators
Power, USB, and status
Product Instrument dimensions
160 × 324 × 255 mm (6.3 × 12.75 × 10.0 in)
Product Instrument weight
4.6 kg (10.2 lb)
Auxiliary Connections
Product Connector C
9-pin DSUB connector that includes DC Common, two digital output signals, and two digital input signals
Product Trigger input
BNC female, TTL compatible
Product Trigger output
BNC female, TTL compatible
Product Potential (E1) output
N/A
Product Current (I1) output
N/A
Product Potential (E2) output
N/A
Product Current (I2) output
N/A
Product Auxiliary analog input
BNC female, ±10 V differential input, 313 µV resolution, 0.2% accuracy (available when second working electrode not in use)
Product Auxiliary analog output
BNC female, ±10 V bipolar output, 313 µV resolution, 0.2% accuracy (available when second working electrode not in use)
Product WK1 input
N/A
Product WK2 input
N/A
Accessories
Product Dummy cell
External dummy cell included
Product Cell cable
Combination D-SUB connector to multiple banana plugs via shielded coaxial cables (included)
Rotator Control Connections
Product Rotator connector A
7-pin mini circular DIN includes analog and digital signal grounds, digital rotator enable signal (+15 V max), auxiliary digital output signal, and analog rotation rate control signal
Product Rotator connector B
3-pin connector includes analog signal ground, digital rotator enable signal (+15 V max), and analog rotation rate control signal
Product Rate control signal
±10 V, ±2.5 V
Product Digital enable signal
Open drain with 4.7 kΩ pull up to +5 V (TTL compatible)
Electrochemical Impedance Spectroscopy (EIS)
Product EIS capable
Yes
Product EIS frequency range
10 µHz - 1 MHz
Product EIS frequency resolution
<1 ppm 1 MHz - 100 mHz, <70 ppm 1 mHz - 10 µHz, <80 ppm 100 mHz - 10 mHz, <90 ppm 10 mHz - 1 mHz
Product EIS frequency stability
±10 ppm
Product Modes
Galvanostatic, Potentiostatic
Product Voltage excitation setpoint
1 mV - 200 mV peak, ±10% of setting
Product Current excitation setpoint
0.01% - 100% of current range, 10% of setting, 200 mA maximum
Product Frequency sweeping
Custom list, Linear, Logarithmic
Product EIS accuracy
EIS Accuracy Contour Plot
Data Acquisition (for DC Experiments)
Product Clock resolution
10 ns (minimum time base)
Product Point interval
80 µs (minimum)
Product Synchronization
Simultaneous sampling of all analog input signals
Product Raw point total
<10 million per experiment
Applied Potential (Potentiostatic Mode)
Product Potential ranges (applied)
±10 V, ±15 V, ±2.5 V
Product Potential resolution at each range (applied)
313 µV per DAC bit, 469 µV per DAC bit, 78 µV per DAC bit
Product DC accuracy (potential, applied)
±0.2% of setting; ±0.05% of range
Product DAC output (potential)
16 bits
Product CV sweep rate (minimum)
10 µV/s
Product CV sweep rate (maximum)
75 V/s
Measured Potential
Product Potential ranges (measured)
±10 V, ±15 V, ±2.5 V
Product Potential resolution at each range (measured)
313 µV per ADC bit, 469 µV per ADC bit, 78 µV per ADC bit
Product DC accuracy (potential, measured)
±0.2% of setting; ±0.05% of range
Product Filters (for DC Experiments)
100 kHz, 1 kHz, 100 Hz, 30 Hz, 10 Hz
Electrometer (Reference Electrode Amplifier)
Product Input impedance
>10¹³ in parallel with <10 pF
Product Input current
<10 pA leakage/bias current at 25°C
Product CMRR
>100 dB, 0 - 1 kHz, >74 dB at 10 kHz
Product Electrometer bandwidth
>15 MHz (3 dB)
Power Amplifier (Counter Electrode Amplifier)
Product Output current
±1 A (maximum)
Product Short circuit current limit
10 mA - 100 nA ranges: <200 mA, 1A, 100 mA ranges: <1.3 A
Product Compliance voltage
±17 V
Product Bandwidth
>2.5 MHz (on fastest speed setting)
Product Noise and ripple
<35 µV RMS in 2 MHz bandwidth
Product Slew rate/rise time
10 V/µs (on fastest speed setting)
Applied Current (Galvanostatic Mode)
Product Current ranges (applied)
±1 A, ±100 mA, ±10 mA, ±1 mA, ±100 µA, ±10 µA, ±1 µA, ±100 nA
Product Current resolution at each range (applied)
31.3 µA, 3.13 µA, 313 nA, 31.3 nA, 3.13 nA, 313 pA, 31.3 pA, 3.13 pA
Product DC accuracy (current, applied)
±0.2% of setting; ±0.05% of range
Measured Current (Potentiostatic Mode)
Product Current ranges (measured)
±1 A, ±100 mA, ±10 mA, ±1 mA, ±100 µA, ±10 µA, ±1 µA, ±100 nA
Product Current resolution at each range (measured)
31.3 µA, 3.13 µA, 313 nA, 31.3 nA, 3.13 nA, 313 pA, 31.3 pA, 3.13 pA
Product Autoranging
Yes
Product Practical current range
20 pA to 1 A
Product DC accuracy (current, measured)
±0.2% of setting; ±0.05% of range
Product AC accuracy (measured)
Frequency- and range-dependent to 1 MHz
Product AC leakage current
Frequency- and range-dependent to 1 MHz
Product ADC input
16 bits
Product Filters (for DC Experiments)
100 kHz, 1 kHz, 100 Hz, 30 Hz, 10 Hz
Ground Connections
Product DC common (signal)
The DC Common is isolated from the USB port, the instrument chassis and earth ground. The DC Common is accessible via a banana binding post (black) on the back panel.
Product Chassis terminal
The instrument chassis terminal is accessible via a banana binding post (metal) on the back panel. The GRAY banana plug on the cell cable also provides a chassis connection.
Product Earth
No direct connection to earth ground is provided.
Electrode Connections
Product Reference electrode
Sense line with driven shield
Product Counter electrode
Drive line with grounded shield
Product Working electrode channels
1 Channel
Product Working electrode #1 (WK1)
Separate sense and drive lines, each with driven shield (current measurement via passive shunt)
Product Working electrode #2 (WK2)
N/A
WaveDriver 100 Electrochemical Workstation Cell CableView Product
Cables
Product Cable type
Workstation cell cable
Product Cable terminal A type
Plug, D-SUB 17-pin + 7 Coax
Product Cable length
3 ft
Product Cable color
Black
Product Cable instrument compatibility
WaveDriver 100 electrochemical workstation
Workstation Cell Cable
Product Number of cell cable leads
Five (5)
Product Cell cable lead colors
Counter/Auxiliary [GREEN], Instrument Chassis (ground) [GRAY], Reference [WHITE], Working 1 (drive) [RED], Working 1 (sense) [ORANGE]
Product Cell cable lead termination
Banana Plug (4 mm)
Product Cell cable shielded lines
Counter, Reference, Working 1 (drive), Working 1 (sense)
WaveDriver 40/100/200 Power SupplyView Product
Workstation Compatibility
Product Compatible electrochemical workstation
WaveDriver 100 (AFP5), WaveDriver 200 (AFP3), WaveDriver 40 (AFP4)
Electrochemical Workstations
General
Product Power supply input
100 - 240 VAC, 1.4 - 0.7 A, 50 - 60 Hz
Product Power supply output
24 VDC, 5.0 A power supply (included) has a C14 type input connector
Product Power cord
Various international cables sold separately (C13 type)
Power CordsView Product
Replacement Parts & Accessories
Customers may wish to order replacement or additional components of this product. Should you want more details or wish to order an additional part, refer to the list below.
Qty
Product Name / Part #
Price
1
WaveDriver 100 Electrochemical Workstation Cell Cable
ACP5E01
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Universal Dummy Cell, Modular
AFDUM9
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
WaveDriver 40/100/200 Power Supply
RRPA24V5A
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
1
Power Cords
POWER-CORD
Login to View Prices
Customers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
- Hettick, M.; Ho, E.; Poole, A.J.; Monge, M.; Papageorgiou, D.; Takahashi, K.; LaMarca, M.; Trietsch, D.; Reed, K.; Murphy, M.; Rider, S.; Gelman, K.R.; Byun, Y.W.; Miller, J.S.; Hanson, T.; Tolosa, V.; Lee, S.; Bhatia, S.; Konrad, P.E.; Mager, M.; Mermel, C.H.; Rapoport, B.I. Minimally invasive implantation of scalable high-density cortical microelectrode arrays for multimodal neural decoding and stimulation. Nature Biomedical Engineering 2025, 1-16.
- Soni, C.B.; Barik, S.K.; Vineeth, S.K.; Yadav, B.; Chandra, M.; Sungjemmenla, .; C, S.; Kumar, H.; Kumar, V. Sodium metal anodes with multiphasic interphases for room temperature sodium–sulfur pouch cells. J. Mater. Chem. A 2025, 13, 6813-6825.
- Singh, A.D.; Cyril, A.A.; Varshney, G.; Dey, A.; Sengupta, S. Electrodeposited multiphase Sb, SbSn, Cu2Sb composite with superior chemical buffering as negative electrode for lithium-ion batteries: Effect of composition on lithiation behavior of Sb-Sn-Cu alloys. J. Alloys Compd. 2024, 1005, 176174.
- Nachaki, E.O.; Kuroda, D.G. Transitioning from Regular Electrolytes to Solvate Ionic Liquids to High-Concentration Electrolytes: Changes in Transport Properties and Ionic Speciation. The Journal of Physical Chemistry C 2024, 128, 11522-11533.
- Jeong, S.; Branco, A.J.; Bollen, S.W.; Sullivan, C.S.; Ross, M.B. Universal pH electrocatalytic hydrogen evolution with Au-based high entropy alloys. Nanoscale 2024, 16, 11530-11537.
- Senadheera, D.I.; Carrillo-Bohorquez, O.; Nachaki, E.O.; Jorn, R.; Kuroda, D.G.; Kumar, R. Probing the Electrode–Electrolyte Interface of Sodium/Glyme-Based Battery Electrolytes. The Journal of Physical Chemistry C 2024, 128, 5798-5808.
- Malone, N.; Fiedler, H.; Mitchell, D.R.G.; Kennedy, J.V.; Waterhouse, G.; Gupta, P. Grain Boundary-Rich Tungsten Carbide Nanoparticle Films Exhibit High Intrinsic Activity Toward Hydrogen Evolution. ACS Appl. Nano Mater. 2024, 7, 4843-4852.
- Zhou, Y.; Chu, B.; Sun, Z.; Dong, L.; Wang, F.; Li, B.; Fan, M.; Chen, Z. Surface reconstruction and charge distribution enabling Ni/W5N4 Mott-Schottky heterojunction bifunctional electrocatalyst for efficient urea-assisted water electrolysis at a large current density. Applied Catalysis B: Environmental 2023, 323, 122168.
- Chu, X.; Sathish, C.I.; Li, M.; Yang, J.; Li, W.; Qi, D.; Chu, D.; Vinu, A.; Yi, J. Anti-Stoke effect induced enhanced photocatalytic hydrogen production. Battery Energy 2023, 2, 20220041.
- Uwadiunor, E.; Johnson, D.; Hansen, K.; Djire, A. Controlling the Surface Reactivity of Hybrid Ti3CN MXene via In-situ Electrocatalysis. ChemCatChem 2022, 14, e202200702.
- Ren, Q.; Hou, C.; Yu, J.; Madatta, I.J.; Lin, Y.; Jian, Z.; Ding, J. Kinetics-Boosted Bimetallic Organic Complexes Modified BiVO4 Photoanodes for Photoelectrochemical Water Oxidation. SSRN 2022.
- Moshari, M.; Koirala, D.; Allen, P.B. Facile Fabrication of DNA Biosensors Based on Oxidized Carbon Black and Graphite Oxide. Proceedings 2019, 41, 70.
Product Documentation
Related Products and Accessories
-
MSR evo Electrode Rotator
AFMSR24B1Login to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region. -
Reference Electrode, Silver/Silver Chloride, Single Junction
RREF0021Login to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region. -
Counter Electrode Assembly, Platinum (Pt), 14/20
AFCTR5Login to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region. -
WaveVortex 10 Electrode Rotator
AF01WV10Login to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region. -
Precision RDE/RRDE Shaft for E5, E5TQ, E6, E7, and E8 Series Tips
AFE6MBLogin to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region. -
Rotating Disk/Ring-Disk Cell Kit, Standard Volume, Water Jacket
AKCELL3Login to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region. -

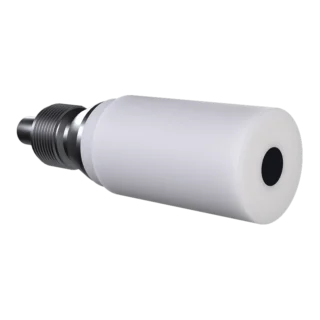

E5 Series Rotating Disk Electrode, Glassy Carbon (GC), PTFE shroud
AFE5T050GCLogin to View PricesCustomers must be logged into their account to view prices. Not all regions provide pricing online. If you do not see prices, you can obtain them from the designated sales channel in your region.
